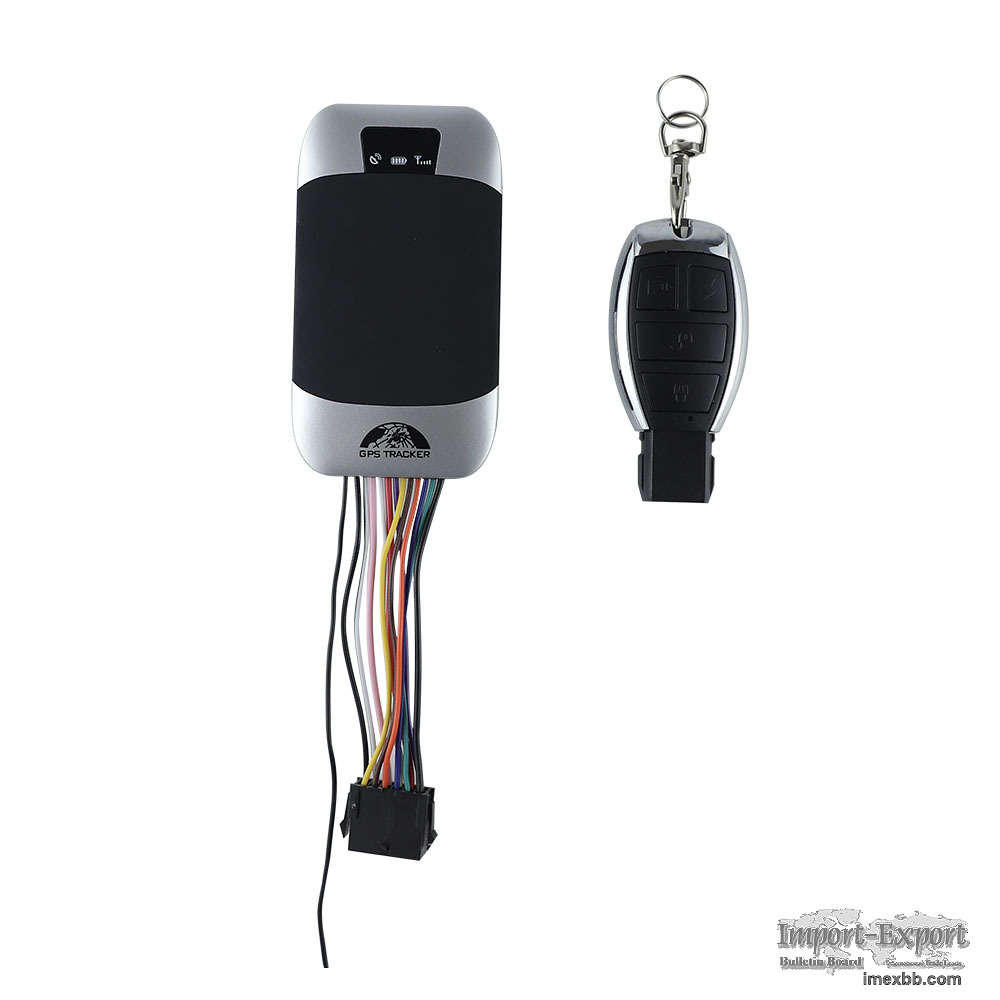

mini motor vehicle gps tracker fuel sensor tk 303f with android & ios app t

Wholesale China Supplier Vehicle Car GPS Tracker GPS-303G, Android Ios
APP Truck GPS Tracker

1, Summary
This tracker is a new product based on the GSM / GPRS network and GPS
satellite positioning system, which set multiple functions of security,
positioning, monitoring surveillance, emergency alarms and tracking in
its entirety. It can track and monitor remote target by SMS or internet.
Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft GPS car
tracker Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft
GPS car tracker


2, Specifications

Content
Specification

DIM
9.6×5.3×1.6cm

Weight
70g

Network
GSM/GPRS/WCDMA

Band
850/900/1800/1900MHz/2100 MHZ

GPS sensitivity
-159dBm

GPS accuracy
5m

GPS start time
Cold status  45s
Warm status  35s
 Hot status  1s

Car power supply
12 V -24V

Back up battery
Chargeable 3.7V 350mAh Li-ion battery

Storage Temp
-40°C to +85°C

Operation Temp.
-20°C to +65°C

Humidity
5%--95% non-condensing


3, Features and Functions:
GSM/GPS LED Indicator
Initialization
Change Password
Authorization
Single Locating

Auto track continuously
Automatic update positions of vehicle turns
GPS drift suppression
Absolute street address by SMS
Location based service (LBS)
Data logging
Data Load
Forward the third parties' message
Charges Inquiry
Alarm Function
Low battery alarm
External Power off alarm
GPS blind Spot alert
SOS
Geo-fence
Multi-area management
Movement alarm
Over speed alarm
ACC working alarm
Alarms under Arm State
1 ACC alarm
2.Shock Sensor alarm
Alarm without GSM network service
Check the Vehicle State
Reset Hardware
Sleep Mode
1 Sleep by time
2 Sleep by shock sensor
3 Deep Sleep by shock sensor
4 No sleep mode
Scheduled wake-up
Check IMEI
Set up Terminal (local) Time
TCP / UDP Switch
Configure parameters by USB
GPRS setting
Less GPRS traffic
Modes Switch between "SMS" and "GPRS"
Set up monitor center number
Cut off the Oil and Power System

Packaging Detail:
GPS unit
12PIN harness
Microphone
Relay
Screwer
Manua , l
Giftbox
Remote controller ( only for model 303G,303I)

Optional
MicroSD
Alarm siren(big or small both ok)
Fuel sensor

Product Photos :

gps 303F:



gps 303G



GPS 303H:



303I :




4, FIVE tracking solutions:

1. SMS tracking by calling with latitude and longitude, speed, battery
status, Google map link
2. Get absolute street address by SMS
3. Free PC based tracking application (send you in CD package)
4. Optional web server
5. Free mobile tracking app for android/IOS phones

Web server online tracking www.gpstrackerxy.com . It is ok to track
10,000pcs units in platform at one time !
10 years free use on the web based platform and the mobile APP
IOS&Android version
Check demo on server 1
Account: demo         Password:8888 ,
For more information contact:  Zoe Zhang


Facebook: https://www.fa , cebook.COM/zhang.zoe.716




APP tracking:


5, FAQ:
Q1.What is the MOQ ?
A:1000PCS for our own available designs

Q2.Can I mix different designs?
A:No!

Q3.Can I get a lower price if I order large quantities?
A:Yes, cheaper prices with more bigger size orders.

Q4.Can I add or delete items from my order if I change my mind ?
A:Yes, but before shipment.

Q5.Can I get the pre-production sample ?
A: Yes, For OEM order, it is ok to send samples for confirmation before
mass prouction.
Q6.When you ship my order?
A: Normally 3-5days after receiving your payment, but it can be
negotiated based on order qty and production schedule.
Q7.How about the quality guarantee period?
A: One year!

Q8. How can you guarantee the production quality ?
A:Our production quality follow ISO9001 and We have 17 years experience
of QC team. We have strictly quality control system in our production
process. We have 4 times inspection for each finished product before
package Third part inspection accepxable
Q9.What is the packing box?
A: Generally, we pack our goods in neutral white boxes and brown cartons.

Q10. What is your terms of payment?
A: Order less than 1000 units, require full payment in advance, MOQ 1000
units, T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages
before you pay the balance.

Q11. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q12. What is your sample policy?
A: We can supply the sample, but the customers have to pay the sample
cost and the courier cost.

Q13. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q14: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers
benefit ;
2. We respect every customer as our friend and we sincerely do business
and make friends with them,no matter where they come from.

Minimum Order: 1 sets
