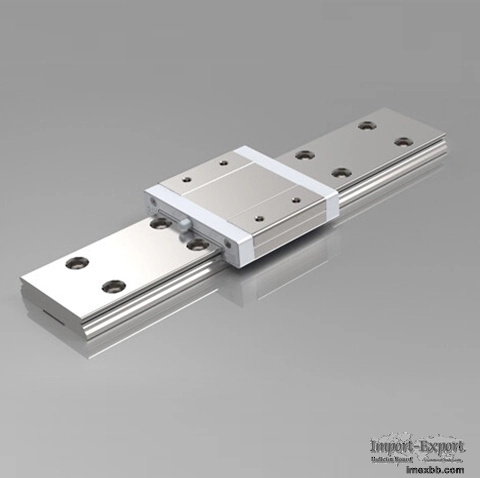

Mini Linear Slide Rail-LMNW Series

Category： Miniature Ball Bearing Carriages and Guide Rails

The LMNW series is designed with Gothic arch grooves in two rows, enabling it
to bear an equal load in radial, reverse radial, and lateral directions due to
its 45° contact angle. The small linear guide boasts high rigidity and
excellent antirust resistance, thanks to the stainless steel construction of
its metal components. With the miniature ball bearing and motorized linear
slide's small size and lightweight, it is especially suitable for small
automation equipment. Moreover, the manufacture of CSK produces mini ball
bearing linear slide rail that offers interchangeability, high positioning
accuracy and complies with international standards.

Click on linear motion manufacturer to learn more.

Drawing Of Mini Ball Bearing Linear Slide Rail-LMNW SeriesMiniature Linear
Guide Rail-LMNW Series
The Mini Linear Slide Rail Is A Compact Powerful Device With A Multitude Of
Features

The motorized linear slide rail has a static load capacity of up to 1350 lb,
making it robust and reliable. It is available in five sizes, ranging from 7 mm
to 20 mm base width, providing flexibility for various applications.

The rail lengths can extend up to 3600 mm, accommodating different operational
needs. One of its key features is its self-lubricating nature, reducing
maintenance requirements. It has no rolling elements, eliminating the risk of
catastrophic failure.

The mini motorized linear rail operates smoothly, quietly, and repeatably,
ensuring consistent performance. It can withstand vibration and shock,
enhancing its durability. It comes in two design configurations: Precision and
Compensated, catering to specific precision needs.

The rail is ceramic coated aluminum, while the carriage is anodized aluminum,
ensuring long-life and corrosion resistance. Despite its robust features, it
has a compact design, making it space-efficient. It offers lead screw and
stepper motor options and is interchangeable to comparable ball style systems,
providing versatility in its use.
