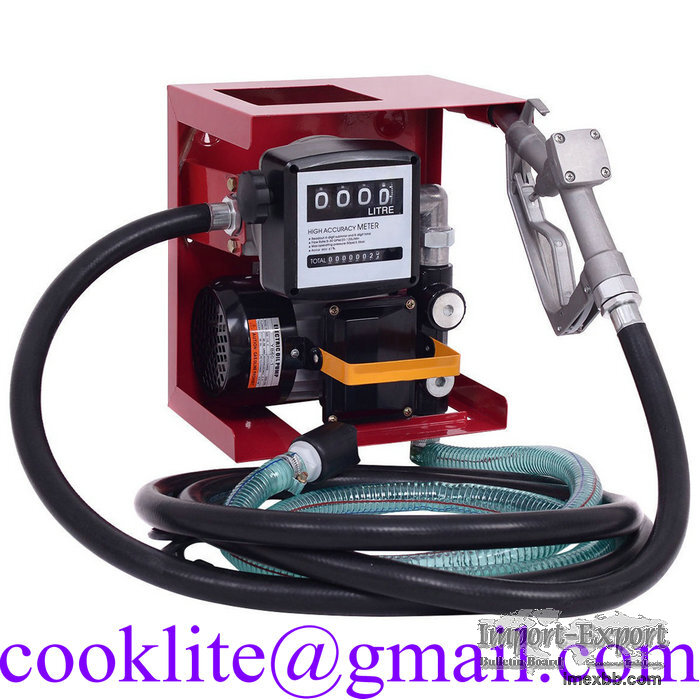

Mini Fuel Dispenser Electric Diesel Fuel Oil Dispensing Transfer Pump Kit

Mini Fuel Dispenser AC 230V Wall-mounted Electric Diesel Fuel Oil Dispensing
Transfer Pump Kit Manual Fuel Nozzle Hose Meter

GT820 Metering Diesel Transfer Pump

Pump Head Material: Cast iron

Pump Body Material: Aluminum

Rear Cover Material: Aluminum

Protection cover Material: Cast iron (electroplate)

Stator Material: Magnetic steel

Coil Material: 100% Copper

Motor :Single-phase permanent magnet motor

Filter Material: Plastic ( POM)

Inlet and outlet joint Material: Cast iron(Copper Plating)

Seal Material: NBR

Plug: English-style(3 line)

Flow Meter: 4 digit mechanical Flow meter

3/4" Outlet hose with 1" male thread 4m(Rubber, Black)

Oil Nozzel: Aluminum (Hand)

Framework Cast iron (Red)

Voltage: 12V/24V

Power: 175W ( DC ); 550W ( AC )

Speed: 2800 R/min

Inlet diameter : 25mm

Outlet diameter : 25mm

Output flowing: 40L/min ( DC ); 60L/Min ( AC )

Suction: 5m

Head: 10m

Cable Length: 2m ( DC ); 1.3m ( AC )

Self-Priming: YES

Packing: 1PCS/CTN

Package Size: 42.5 x 36 x 33cm

N.W/G.W: 13/14KGS ( DC ); 17/18KGS ( AC )

Minimum Order: 100 pieces
