Mimaki UJF-7151 Plus Head Assembly M017429 Printhead



Original Mimaki UJF-7151 UV printer printhead M017429
Mimaki UJF-7151 Plus Printhead - M017429

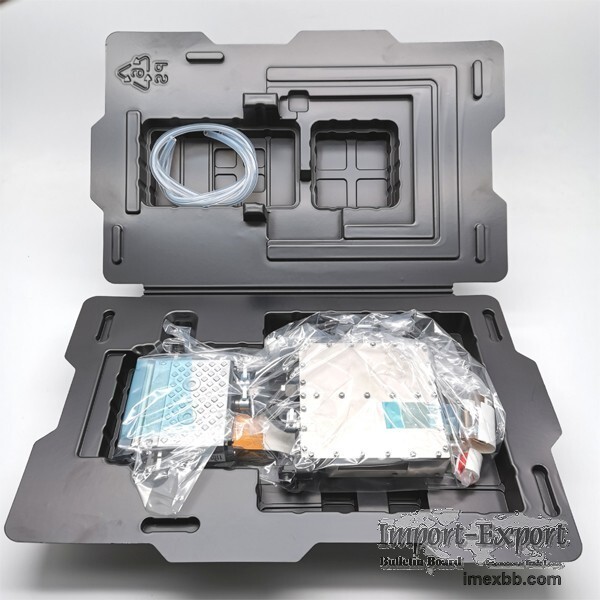

This head assembly is suitable for Mimaki UJF-7151 Plus printers. This is the original Mimaki part (number M017429 replaced by MP-M025074). This head assembly includes brackets, tubes, damper and subtank.

Specifications :

Print Method: On-Demand piezo technology
Ink Re-circulation Structure: Ink re-circulation through all channels
Print Width: 53.7mm
Nozzles: 636
Nozzle Resolution: 300npi
Number of Lows: 2
Nozzle Spacing (Row to row distance): 4.64mm
Grayscale Level: 4 levels/0,5,6,7drops
Drop Volume: 57~80pL
Frequency: 4.8kHz/7drops
Power Supply Voltage for Driving the Head: 14~31V
Power Supply Voltage for Driving Circuit: 5V, 39V
Ink Type: UV-curing
Size, Weight: 94.1mm(W)×26mm(D)×79mm(H), 161g

Printer compatibility :

Mimaki UJF-7151 Plus
Mimaki UJF-7151 Plus Head Assembly M017429 Printhead
