Mimaki TS500-1800 Gen5 Printhead (INDOELECTRONIC)

Price : USD 1,300.00/Pcs
Min Order : 1 - 5 Pcs
Lead Time : 3 – 5 Days
Port : CIF / Kualanamu International Airport
Terms : T / T, Western Union, Paypal, Money Gram
Shipment : FedEx, DHL, UPS
Product : Ori and Ready in stock

Buy Mimaki TS500-1800 Gen5 Printhead from Indoelectronic is 100% safe,Because purchase products at Indoelectronic provide a 100% money back guarantee. Location Indoelectronic : Jl.S.Parman No.21/272 Medan. To purchase online visit the website :indoelectronic.com


Indoelectronic store Sell Brand model Printhead and Printers : Canon, Epson, Graptek, HP, Konica, Mimaki, Mutoh, Ricoh, Roland, Seiko, Spectra, Toshiba, Vutex, and Xaar.
Contact us : order@indoelectronic.com Phone :+6281283202521 . Get the special price.

Description

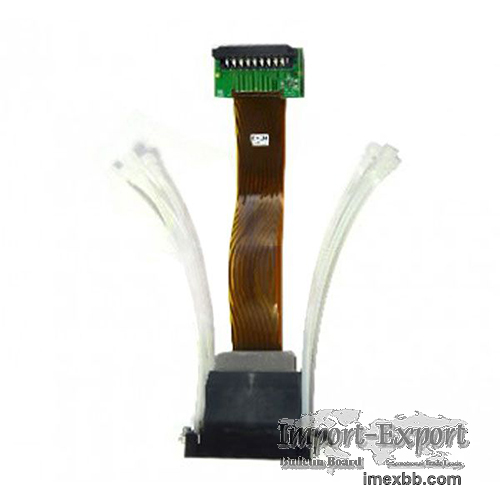

Mimaki TS500-1800 Gen5 printhead Assy Type-D - M014140
This printhead is suitable for Mimaki TS500-1800 & TX500-1800 series printers.
Printer Compatibility: Mimaki TS500-1800 / TX500-1800B / TX500-1800DS
Part No.: M014140
Remarks: Original

Specifications:
Model

PRH-MIM-006
Head materials SST, Nickel alloy, Epoxy Adhesive
Number of nozzles Four 320 nozzles
Nozzle spacing 0.1693 mm
Nozzle density up to 600 npi
Nozzle plate surface Coated SST
Piezo type D33 Stacked PZT
Native drop volume 7 pl
Drop volume range 7 - 35 pl
Drop velocity 7 m/s
Jetting frequency Up to 60 kHZ
Temperature control Integrated Heater and Thermistor
Operator temperature range Up to 80° C
Life 100 billion actuations per nozzle
Dimensions 89 x 25 x 69 mm (not include cables)

Minimum Order: 1 pieces
