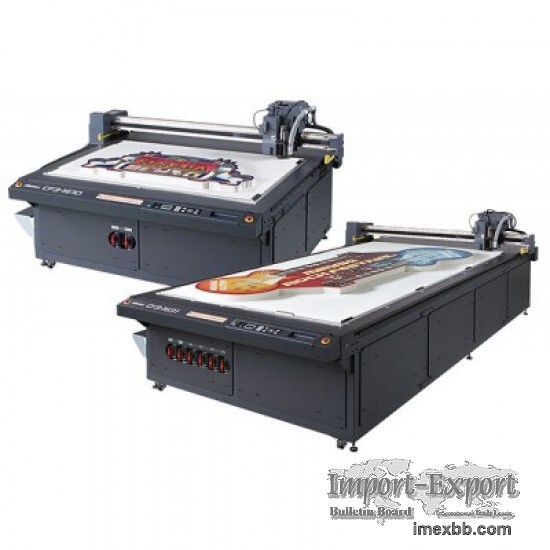

Mimaki CF3-1610 - WORLDPRINTHEAD

Product Description
Equipped with a newly developed router head to cut up to 50mm (2'')* in
thickness.
Cuts a wide range of materials with high accuracy
Supports both small and large size media up to 1.6m x 3.1m (63" x 122").
Even difficult acrylic or aluminum composite panels can be cut with
consistently high accuracy. User exchangeable cutting heads to suit a wide
range of conditions widen your possibilities greatly.

CF3-1631 CF3-1610
Effective cut area 1,600 x 3,100mm
(63" x 122") 1,600 x 1,000mm
(63" x 39.3")
Head drive method X.Y,Z.θ DC servo, special timing belt
Maximum speed 50cm (19.6'')/s
Maximum acceleration 0.5G
Static accuracy Repeatability ±0.15mm
Distance ±0.1mm,or ±0.1% whichever is greater
Origin repeatability ±0.15mm
Maximum cut depth Router : 50mm (1.96"), Tangential cutter : 10mm
(0.39"),
Reciprocating cutter : 20mm (0.78")
Maximum media thickness Router : 50mm (1.96"), Tangential cutter : 30mm
(1.18"),
Reciprocating cutter : 20mm (0.78")
Material clamp Vacuum system with blower
Command MGL-II c3 (MGL-IIc)
Interface USB, RS-232C
Main unit power supply 200V~240V, Single phase 50/60Hz Less than 6A
Dust collector power supply AC100V-120V, Single phase 50/60Hz, Less
than 15A
AC200V-240V, Single phase 50/60Hz, Less than 10A
Blower power supply AC200V-240V, Single phase 50/60Hz,
Less than 30A per unit
Dimensions (WxDxH) 2,250 x 4,120 x 1,320mm
(88.6" x 162.2" x 52.0") 2,250 x 1,860 x 1,320mm
(88.6" x 73.3" x 52.0")
Some of the sample images in this website are artificial renderings.
All specifications and designs displayed in this website are subject to
change without prior notice.
Company names and product names written in this website are trademarks or
registered trademarks of their respective owners.
Model
CF3-1610M Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3")
CF3-1610R1 Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3")
CF3-1610TF2 Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3")
CF3-1631M Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0")
CF3-1631R1 Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0")
CF3-1631TF2 Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0")
