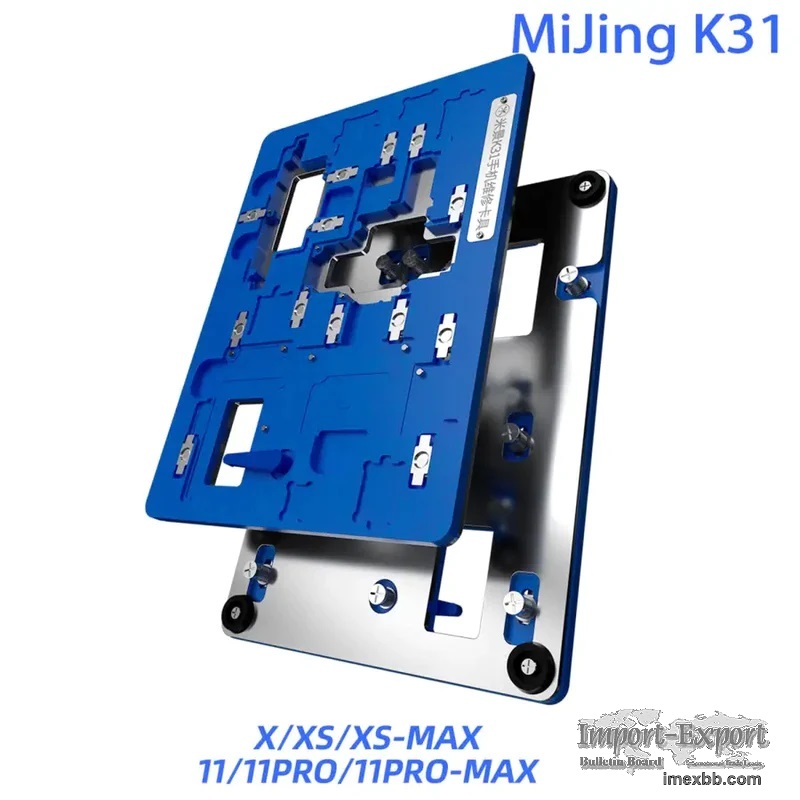

MiJing K31 PCB Board Holder Fixture

MiJing K31 Multifunctional PCB soldering repair platform, with different
sections for Phone CPU NAND chips positioning, soldering, desoldering,
reballing, etc.

Feature:
Support Phone X /XS / XS MAX / 11 / 11 PRO / 11 PRO MAX
Genernal mobile phone maintencance fixture, rotary fixed design, no rebound,
fixed firmly! The design has three adjustable distances.
Prevent clamps from moving during use, special anti-skid pad, in order to
allow heating. Let the hot air can be discharged more efficienty. Add heat
sink to botton of clamp.
Rotary shaft locks the motherboard or IC more efficienty, Fixed well without
rebound.
Fixture also support IC type fixtures fixed for removal of back glue, the
clamp is designed to bear the force of IC beam, which can hold up the empty
parts of IC well and aovid the IC breaking when removing black glue.
The fixture can be adjusted at difference distance from the high, middle and
low levels. It's necessary to loosen the two screw as the bottom, move the
fixing plate to the appropriate gear position, and then tighten the bottom
screws to lock it.

Minimum Order: 1 pieces
