Mijing C17 motherboard layered test fixture

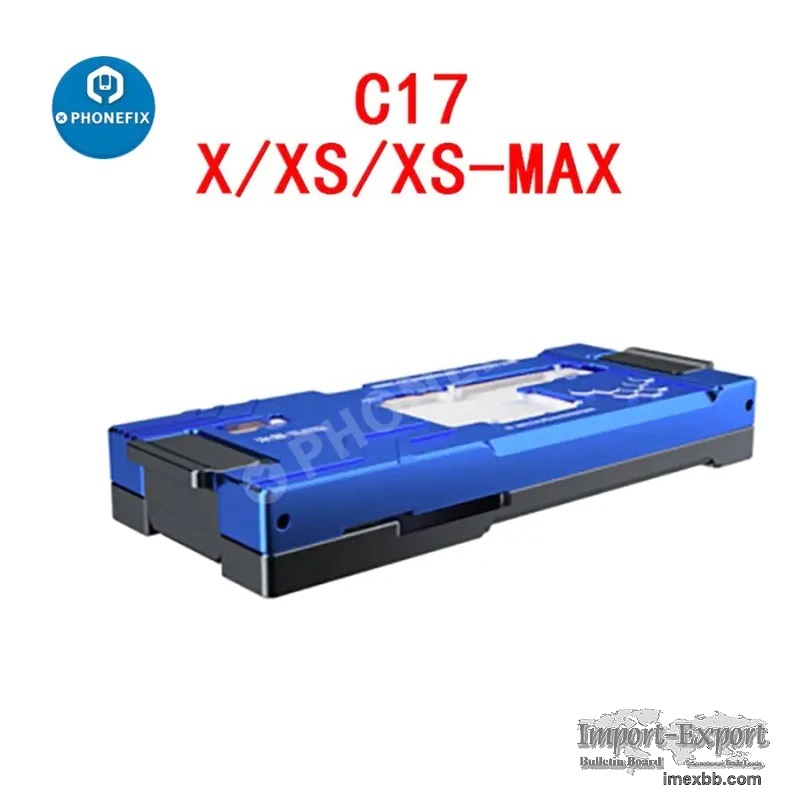

Mijing Phone motherboard layered test fixture for Phone X-13 Pro MAX. MJ C17
motherboard function test fixture for Phone X-13 Pro Max motherboard middle
layer function testing. Mijing logic board upper lower layer middle frame
tester for Phone X/XS/XS MAX/1/11Pro/11 Pro MAX/12/12 mini/12Pro/12 Pro
MAX/13/13 mini/13Pro/13 Pro MAX.

Feature:
1. Easy to use, connect the upper and lower motherboards for testing/repair,
avoid problems after installation, increase maintenance speed.
2. Check in advance to avoid duplicate disassembling and breaking the
motherboard
Small size, easy to carry.

Operational Process:
1. Decomposition Phone X-13 Pro Max Middle Layer simply equipped the test
fixture.
2. Install: Put in the lower main board, put on the pinboard, but the top
board in, and then cover the test rack.
3. The first way to connect the screen line, boot, power cord, or battery
test ink success or not.
4. The second way is to connect the end plug on the base of the first method
to implement the brush function.

Minimum Order: 1 pieces
