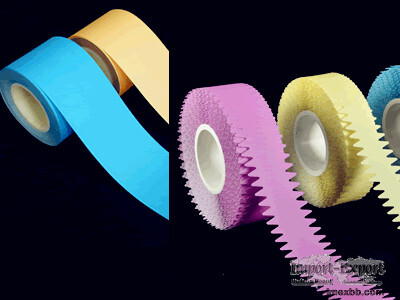

Micro finishing Film

Micro finishing Film

GRISH Microfinishing film is produced by coating the abrasive grains uniformly
on the high strength PET film, which can provide high efficiency and achieve
mirror finishing result.
Available abrasive materials are aluminum oxide, silicon carbide and diamond
etc. to meet different hardness of workpiece finishing requirments.

Specifications

Abrasive , /Grit Size Silicon Carbide(SC) Aluminum Oxide(AO) Diamond(D）
100µm #150: Aluminum Oxide(AO)
80µm #180: Silicon Carbide(SC), Aluminum Oxide(AO), Diamond(D）;
60µm #240: Silicon Carbide(SC), Aluminum Oxide(AO), Diamond(D）;
50µm #320: Aluminum Oxide(AO);
40µm #360: Silicon Carbide(SC), Aluminum Oxide(AO), Diamond(D）
30µm #600: Silicon Carbide(SC), Aluminum Oxide(AO), Diamond(D）
20µm #800: Aluminum Oxide(AO), Diamond(D）
15µm #1200: Silicon Carbide(SC), Aluminum Oxide(AO), Diamond(D）
12µm #1500: Aluminum Oxide(AO)
9µm #2000: Silicon Carbide(SC), Aluminum Oxide(AO)
PET (base):
Thickness: 100µm (4mil), 75µm(3mil), 125µm (5mil);
Length: 200mm*15m, 101.6mm (4in)*46m, 100mm*15m, 112.6mm (1/2in)*46m;
Backing: Anti-slip, PSA, Velcro
Remark: Customizations are available upon requests.

Features
1. High removal rate with well-plated abrasive grains;
2. Easy scraping and less plug;
3. Consistent finish performance with uniform PET backing and abrasive plated-
upon;
4. Long durability and good cost-performance for customers.

Applications:
Crankshaft, Camshaft, Roller, etc.

Minimum Order: 1 sets
