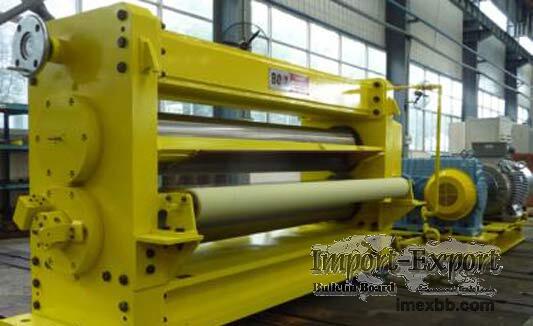

Metal Side Trimming/Shearing Machine

BOYA Precision Industrial Equipment Co., LTD. side trimmer, scrap chopper,
flying shear, and other shear metallurgical equipment quality and delivery
schedule are reliable.

By differentiation development strategy with "We have what others have not, and
ours are better in quality than others & apos" BOYA trimming series products
had ranked as first-class brand in the international market.

Since 2007, BOYA has provided over 300 sets of trimmers/shears to customers,
BOYA metal trimming machine series products include single/double tower
trimmer, single/double tower chopper, combined side trimmer, drum flying shear
and so on. Our metal processing machine customers not only include Baosteel,
Shougang steel and other leading metallurgical enterprises but also include
Siemens, Danieli and other international well-known engineering companies.
BOYA takes targeted design according to customer demand, provides customized
system solutions to customer from product research to product use and Q&A
training, help metallurgical enterprises transformation and upgrading!

Metal Side Trimming/Shearing Machine Types

Cut to Length Machine
The longitudinal shear of cold rolled strip steel mainly has the side trimmer
and slitter. To longitudinal shears, BOYA company mainly produces the side
trimmer which widely used in all kinds of procedures.

Metal Side Trimming Machine
To longitudinal shears, BOYA company mainly produces the side trimmer which
widely used in all kinds of procedures.

Scrap Dispose Equipment
According to the thickness of the plate, the scraps can be rolled into a coiler
by scrap baller or can be cut off into pieces by the chopper.

The Burr After Side Trimmer In Hot Rolling Pickling Line Reason Analysis

BOYA steel/ sheet shearing machine is one of the key equipment of pickling line
or PLTCM. The metal trimming/ shearing machine function is to trim the edge of
raw materials according to the width of finished products and remove the
quality defects of raw materials .For example Burr refers to the raw material
in the edge-cutting treatment, the appearance of "hair-like" quality defects at
the edge of the strip. Its harm is that the burrs are easy to cause the strip
broken in rolling process; A good cut can avoid defects such as burrs, which
may cause quality problems during rolling. The main reasons for burrs are:

Hot rolling raw material defects

Uneven width, edge wave, edge wrinkle, edge crack and other quality defects of
hot rolling raw materials will impact the blade edge of the trimming, resulting
in the blade edge collapse, or lead to the trimmer edge cutting failure or slip
blade, resulting in burr

The clearance calculation has changed

The shear Gap is determined by both Gap and Lap. The mathematical model used
for clearance calculation is based on the theoretical cross-section of hot
rolled material. The theoretical hot rolling material has good consistency of
cross-section, few edge drop and no wedge. In fact, the cross-section
structure of hot rolling materials used in cold rolling mills of various steel
mills is not the same, and hot rolling materials have their own unique cross-
section structure, so there is a deviation between theory and practice

Clearance calibration is not accurate

Trimming edge gap jump

The gap jump of the trimming edge is produced by the coordination of upper and
lower cutting edges. The cutting edge is fixed on the shaft head of the
cutting seat by the hydraulic nut, and the expansion ring is pressed outward by
the locking screw. When the hydraulic nut is not properly fastened, the axial
force is insufficient in the process of vertical strip cutting edge, resulting
in the axial jitter of cutting edge and the jump of cutting edge gap.

BOYA is a professional metal processing machinery manufacturers, we provide
Steel plant finishing line, scrap baller, sheet cutting shearing machine, coil
shearing machine, metal trimming machine,steel shearing machine, plate shearing
machine, stainless steel coil processing and etc. Want to know sheet shearing
machine price or more, contact us,
