Metal Rust Removal Laser Cleaning Machine 200W 500W 100W Handheld

Metal Rust Removal Laser Cleaning Machine 200W 500W 100W Handheld



Metal Rust Removal Laser Cleaning Machine 200W 500W 100W Handheld 0

Description:

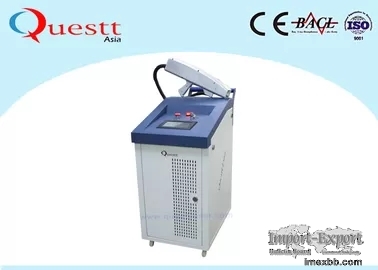

QA-LC100 Metal Laser Rust Removal Machine has equipped with a special 100W
fiber laser device, which is specially design for cleaning thechnology.

The cooling system is water cooled, we also add a dust connector, in order to
work in a clean envirenment.The laser cleaning head is a hand held one, like a
gun, these is a trigger on the gun, to start and stop the cleaning freely.

The fiber calbe length for 100W is 3 meters, can be max 6 meters, we also can
change and make it longer, up to 100 meters for 1000W.The laser derusting
machine can be customized according to customer special demands.

We have sealed bench top, hand held type, moving case type and backpact type to
choose. For laser powers, we also have 30W,50W,70W,100W 200W 500W to choose
from.



Characteristic:



1. Adjustable laser parameters can be hand-held or with the manipulator to
achieve automated cleaning

2. High cleaning efficiency, save time

3. High cleaning precision, strong controllability

4. Disposable input, cost-effective



Cleaning methods:

1.Laser dry cleaning method

Use pulses laser to clean rust directly, it will generate vibration after the
laser energy is absorbed by the base or particles, then seperate the base and
comtaminant.

2.laser+liquid film

First deposit a liquid film on surface ot the base, then use laser to clean the
comtaminant

3.Laser+inert gas

Use inert gas to flow the base surface then laser radiate, the comtaminant will
be flowed away after seperated from base surface, in case the surface will be
polluted and oxided again.





Specifications:

Laser Cleaning Machine Detailed Introduction.pdf



Model QA-LC50 QA-LC70 QA-LC100 QA-LC200 QA-LC1000
Laser source Fiber Fiber Fiber Fiber Fiber
Laser Power 50W 70W 100Watts 200W 1000W
Laser Wavelength 1060nm 1060nm 1060nm 1060nm 1064nm
Pulse frequency 20-100KHz 20-100KHz 20-100KHz 20-100KHz
20-500kHZ
Cooling Air Air Air Water chiller Water chiller
Dimension 760*780*790mm 1000*750*900mm 1500x1200x1800mm
Weight 56Kg 60Kg 60Kg 178Kg 400kgs
Scanner width 10-60mm 10-60mm 10-60mm 10-60mm 10-150mm
Optional Manual/Automation/Customers
Temperature 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40℃


Metal Rust Removal Laser Cleaning Machine 200W 500W 100W Handheld 1



Application scope:



Components combination, welding surface pretreatment, metal surface stripping
(all surface paint or designated parts off paint) and a variety of industrial
products or molds cleaning

All industries, all the old and durty items which need to be cleaned and re-
painting.



Machine details:

Metal Rust Removal Laser Cleaning Machine 200W 500W 100W Handheld 2



FAQ



1 Q: What is the warranty of the rust removal laser ?

A: The warranty is 2 years, whole life after-sale service. Online service is
OK.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc. Any payment term.

3 Q: How is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service,
using online chatting tools like Whatsapp to talk with customers directly.
Efficient and convenient.

4 Q: What is the laser source of the machine?

A: Fiber laser source, different brand to choose from.

5 Q: How is the operation of the machine?

A: The operation is easy. We offer operation manual and videos, show you how to
operate the machine.

We can also send engineers to your factory for training.
