Metal glaze resistor

Metal glaze resistor

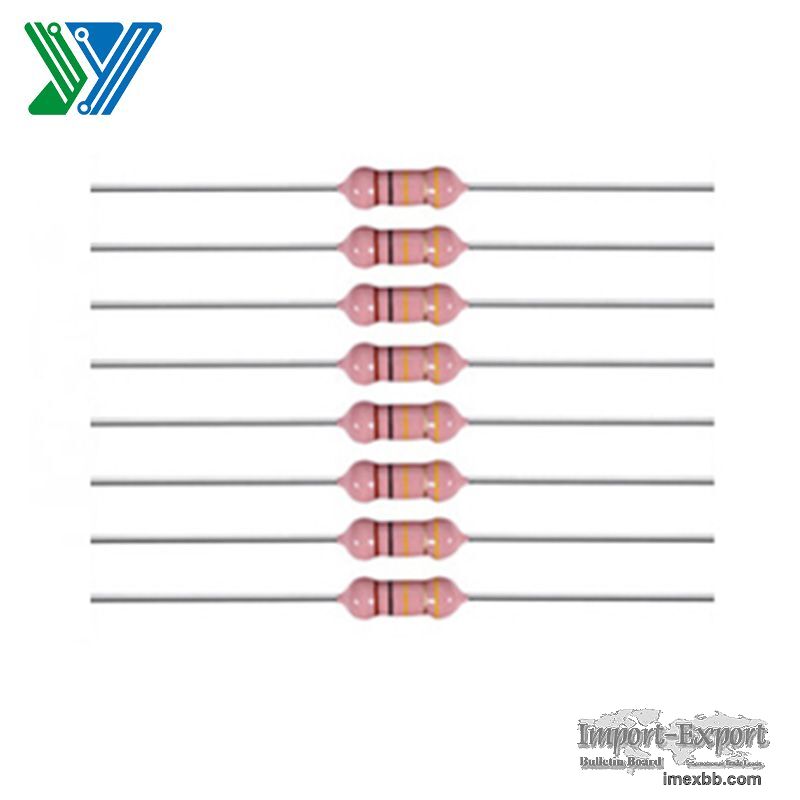

Product Description
High resistance value.small size. endure high temperature. high voltage good
performance cnduring moisture and good overload capability.
Glass Glaze Resistor Features
1. High resistance value.small size. endure high temperature. high voltage good
performance cnduring moisture and good overload capability
2. Operating ambient temperature:-55℃~+125℃。
3. Surface is nonflammable. The normal size coats brick red and small size
coating is gray white. That add a yellow ring at the behind of the precision
color rings to distinguish the resistors types.
4. Resistance tolerance: ±1%, ±2%, ±5%, ±10%
Dimensions and Voltage Performance
Power Resistance range Dimensions（mm） Max. working voltage
 Max. overload voltage Max. Pulse voltage Max.insulation voltage
 L±1 D±0.5 d±0.05 H±1
1/4W 1K~75M 6.0 2.3 0.45 26.0 350V 700V 700V 500V
1/2WS 1K~75M 6.0 2.3 0.45 26.0 350V 700V 700V 500V
1/2W 1K~75M 9.0 3.2 0.55 26.0 500V 1000V 1000V 750V
1WS 1K~75M  9.0 3.2 0.55 26.0 500V 1000V 1000V
750V
1W 1K~75M  11.0 4.5 0.65 26.0 700V 1400V 1400V
1000V
2WS 1K~75M 11.0 4.5 0.65 26.0 700V 1400V 1400V 1000V
2W 1K~75M 15.0 5.0 0.70 26.0 750V 1500V 1500V 1100V
3WS 1K~75M 15.0 5.0 0.70 26.0 750V 1500V 1500V 1100V
3W 1K~75M 24.0 8.0 0.70 26.0 800V 1600V 1600V 1200V
5WS 1K~75M 24.0 8.0 0.70 26.0 800V 1600V 1600V 1200V
