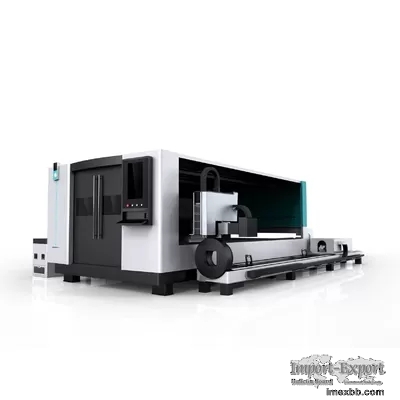

Metal CNC Fiber Laser Cutting Machine 2kw 3kw 4kw 6kw With Rotary

With Rotary Cheap 2kw 3kw 4kw 6kw Cnc Metal Fiber Laser Cutting Machine


Machine table Features:


1.Gantry dual drive, adopting advanced gear rack transmission structure.
Equipped with grinding gear and rack, and through the precision collimator one
time metering assembly. The machine will secure long-term high cutting speed,
high precision transmission.
2,The machine table machined by large planomiller, with high temperature
annealing twice, and high strength complete welding, customer will have long-
term payback.
3, Applicable materials: stainless steel, carbon steel, alloy steel, spring
steel, aluminum, silver, copper, titanium and some metal plate and pipe.
4, Applicable industries: Glasses,jewelry,kitchen ware,chassis and
cabinet,metal pipe,lamp&lanterns,metal ware,hardware,precision machinery,auto
parts,elevator,nameplate, advertisement, electronics,toys and other industries.
metal fiber metal laser cutting machine for 1mm 2mm 3mm 5mm 6mm Stainless Steel
1000w 5mm carbon steel fiber laser cutting machine cnc auto focus laser cutter.

Specificaiton



Item Data
Model GS-1530F
Laser power 3000W Raycus made in China
Working Table Sawtooth
Maximum Idle Running Speed 40m/min
Cutting Thickness Stainless Steel≤13mm , Carbon Steel≤22mm
Control System Cypcut
Auxiliary Gas Cypcut
Max. torque 500N.m
Driver system 1300W Fuji servo motor
Liner guider system HIWIN made in Taiwan
Rack system YYC Taiwan
Warranty time 2 years
Delivery time 25 days
Power supply AC380V/50HZ,

Metal CNC Fiber Laser Cutting Machine 2kw 3kw 4kw 6kw With Rotary 0Metal CNC
Fiber Laser Cutting Machine 2kw 3kw 4kw 6kw With Rotary 1









Manufacturing Technique





Metal CNC Fiber Laser Cutting Machine 2kw 3kw 4kw 6kw With Rotary 2 Fiber
laser power from Raycus 3000W 4000W
Metal CNC Fiber Laser Cutting Machine 2kw 3kw 4kw 6kw With Rotary 3












Cutting torch from WSX or Raytools
Metal CNC Fiber Laser Cutting Machine 2kw 3kw 4kw 6kw With Rotary 4

Controller from Raycus or Au3tech



Metal CNC Fiber Laser Cutting Machine 2kw 3kw 4kw 6kw With Rotary 5

Imported ball screw or helical rack, works with Chinese leashine servo motor
