Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine

Product Description
NO. Item Parameter
1 material color steel/galvanized steel/aluminium(if G550 please
check with us)
2 feeding width 80mm,114mm or as customers' request
3 material thinkness 0.3-0.6mm or as customers' request
4 machine size 4.5*1.2*1.5
5 machine weight 2.5T
6 voltage requirement 380V60Hz3P
7 working speed 10-25m/min
8 Frame Cast steel plate screwed
9 forming steps 10steps
10 rollers GCr12MoV
11 shaft 45#steel,diameter 40mm
12 PLC Delta
13 motor 4kw
14 pump 4kw
15 cutter Cr12 HRC 58-62℃
16 after-sale service 24h*7days*1year’s on line and engineer service
overseas
17 warranty
1year









Accessory of C&U double layers tile roll forming machine
1 Manual decoiler
2 Main roll forming machine
3 Hydraulic pump
4 PLC control system
5 Cutting device
6 Manual table


decoiling-guide feeding-main roll forming-cutting-finished products

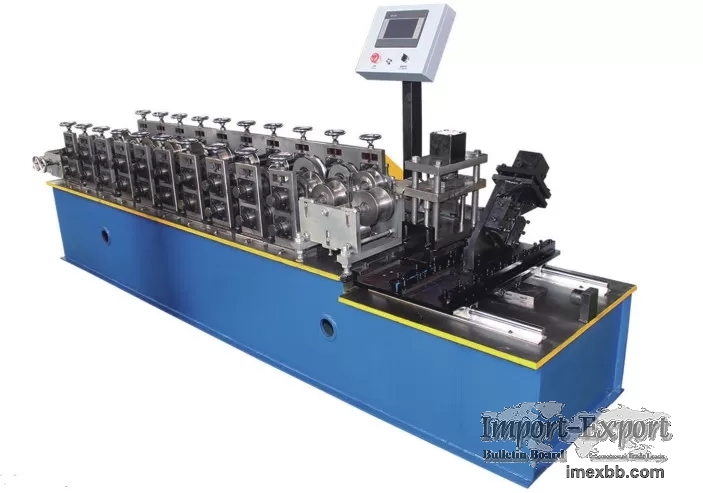

FX 60*27*28 C U Double Layers Keel Roll Forming Machine

Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine 1

Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine 2

Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine 3
