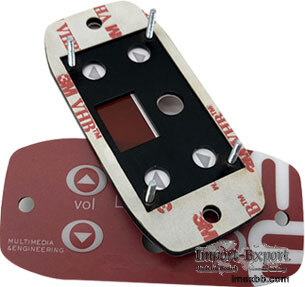

Membrane Switch

A flat membrane switch or more precisely a standard membrane switch assembly is
comprised of several flexible layers that make up a complete switch package.
This assembly can have as few as one active area (key or button) to several
dozen active areas. A custom membrane panel switch is an interface between man
and machine, which enables an operator to communicate with equipment,
instrumentation, or machinery. Subsequently, this allows the operator to
communicate with the device, issuing commands and/or performing other
operations. The operator presses the membrane control panel when he or she
wants to control the device.
Construction of Membrane Switch
Graphic Overlay – PET/PC is usually the overlay material of choice due to its
fantastic chemical resistance and flex property. Komkey offers membrane switch
customized design services such as digital printing, screen-printing, or apply
both methods to ensure you get the right colors, textures and finish your
membrane switch design requirements.

Adhesive Overlay – This adhesive layer sticks the membrane switch overlay to
the top circuit layer, and is usually an acrylic adhesive. The material is the
same as the fourth layer. Only the thickness is maybe different according to
the actual situation.

Top Circuit Layer – The material of this layer is specific. It is a 0.1mm
thickness thermostable PET film printed with conductive silver ink and also
dielectric oil, which used for fastening metal domes.

Circuit Spacer – This layer separates the top circuit from the bottom circuit
so that the touch membrane remains normally break until the membrane switch
keypad is pressed. The circuit spacer is a polyester spacer with adhesive on
both sides.

Lower Circuit Layer – This layer is a 0.1mm-0.25mm thickness thermostable PET
film printed with conductive silver ink and also dielectric oil. This layer
terminates as a flexible tail that serves as an interconnector to controller
PCBs or other IC.

Rear Adhesive – This adhesive layer bonds the entire membrane switch to the
product surface, housing, or to a rigid support panel. Komkey, one of the
membrane switch keypad suppliers, can use the proper adhesive type and
thickness to bond your membrane switch to your equipment.

What Kinds of Membrane Switch Are You Looking for?
Illuminated Membrane Switch with 7 Segment Display
Tactile Membrane Keyboard with Aluminium Plate Type
Custom Membrane Keypad with Colors Printing Type
FPC Custom Membrane Switch Keyboard
Membrane Panel with Half-Stone Printing Type
Membrane Switch Panel with Label Strip Insert
Illuminated LED Membrane Switch with LED Insert
Custom Waterproof Membrane Switch with LGF Construction
Tactile Membrane Switch with Metal Dome
Membrane Switch with PCB Support
Membrane Push Button Panel with Silicone Keypad Type
Membrane Switch with Touch Panel Insert

Membrane Switch Specification
Mechanical Properties:
Life Expectancy
Flat type ≥ 5 million times,

Tactile type ≥ 1 million times

Operation Force Flat Type 57-284g ,Tactile Type 170-397g
Dome Rebound Time ≤6ms
Tail Bending Performance ≤180°
Switch Stroke Flat 0.1~0.5mm,Tactile 0.6~1.5mm
Vibration 20G's max.
Thickness 0.7~1.5 mm
Electrical Properties:
Rated Voltage ≤50V DC
Rated Current ≤ 100mA
Operating Power ≤1W
Insulation Resistance ≥100MΩ (250V DC)
Loop Resistance
10Ω~2kΩ

(Depending on the design)

Contact Resistance
0.5 ~ 5Ω

(Depending on wire length and the materials)

Wire Lead Resistance <1Ω/cm
Base Material Voltage Withstand 1500V DC
Environmental Properties:
Operation Temperature -40°C to +80°C (-40°to 176°F)
Storage Temperature -40°C to +85°C (-40°to 185°F)
Atmospheric Pressure 86 ~ 106 kPa
Humidity +40°C, 90%~95%RH for 240 Hours
Why Choose Our Membrane Switch?
Our Membrane Switch Pad Advantages

Beautiful appearance, Variety color printing.

Small size, light in weight, good tactility, Long life span.

moisture-proof, dustproof, waterproof, anti-corrosion, and erosion of harmful
gases proof.

Easy to operate, intuitive, safe and reliable

Cost-effective, convenient installation

Komkey is one of the reliable membrane keyboard suppliers offering custom
membrane keypad design service

Customized specification is available, the Smaller volume can be accepted.

Customized logo/Brand/Contact way can be printed in the overlay for
advertisement.

Komkey is a professioanl graphic overlay manufacturers, we provide custom
membrane keypad, pcb membrane switch, membrane button panel and etc. Want to
know more? Contact us.

Minimum Order: 100 pieces
