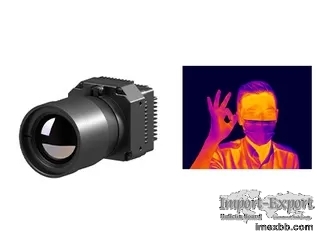

MegaPixel Uncooled LWIR Thermal Camera Core 1280x1024 12μm

PLUG1212 Infrared Camera Module

MegaPixel Plug Series 1280x1024 / 12μm Uncooled Infrared Camera Core with
Ultra Clear Imaging

Product Description

PLUG1212 is a large format of uncooled thermal imaging camera module with
LWIR 1280x1024 resolution and 12µm detector, specially designed to meet high
performance applications of thermal imaging.

With the cutting edge Vanadium-Oxide technology, PLUG1212 infrared camera
core could remain superior environmental adaptability in complex and harsh
weather conditions. Also it presents ultra clear image and has
characteristics of a low-noise high sensitivity, stable performance.

Global Sensor Technology is committed to opening a new vision for the
infrared thermal imaging industrial. We specialize in the design,
manufacture, sales and marketing of thermal imaging detectors and infrared
modules to provide our customers a variety of infrared thermal imaging
solutions which shorten secondary development time and greatly reduce the
cost for customers.

Main Features

- Detector Material: Vanadium Oxide

- Detector Resolution: 1280x1024 / 12µm

- Size: 56x56x40.2

- Weight: ≤220g

- Wavelength: 8~14µm (LWIR)

- Frame Rate: 25Hz

Product Specifications

Model PLUG1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Typical Power Consumption <2.0W
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤220g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 19mm/25mm
