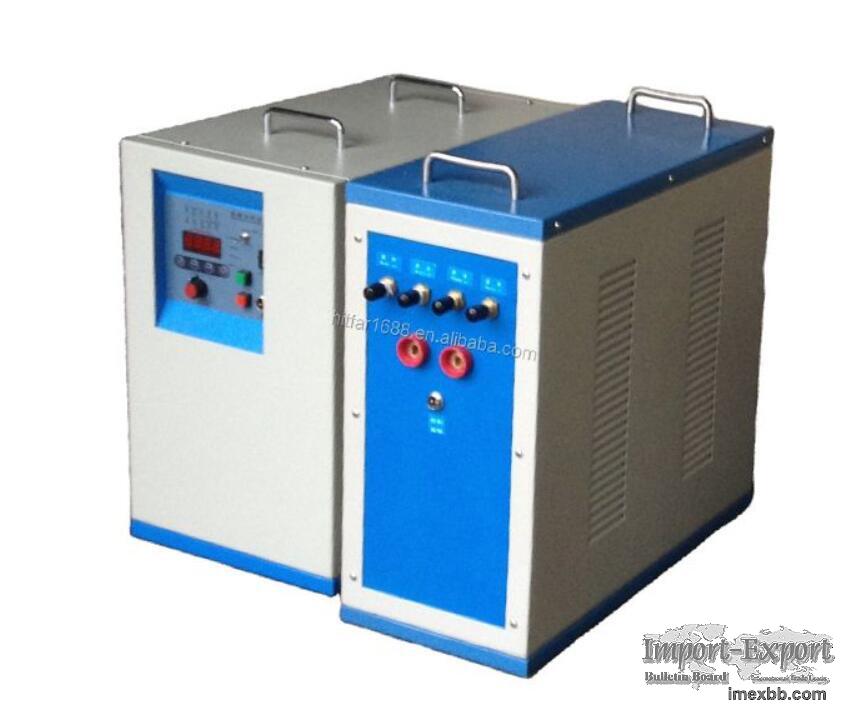

Medium Frequency Induction Heating Machine

Descriptions
Model No.: ZG-MF15, ZG-MF25, ZG-MF35, ZG-MF45, ZG-MF70, ZG-MF90, ZG-MF110, ZG-
MF160
Rated Power: 15kw, 25kw, 35kw, 45kw, 70kw, 90kw, 110kw, 160kw
Main Function: pre-heating and thoroughly heating before rolling, forging, pipe
bending and other processes, smelting for metal from small volume from 1kg to
500kgs
Main Advantage: Oscillation Frequency low to 1-20Khz, heating the metal parts
from the core to surface evenly and thorough out!
Main Components: MF Generator + Compensation Capacitor
APPLICATION
1. Medium Frequency Induction Heating Machine can do welding & brazing for
cutting tools, drilling tools, knives, woodworking tools, turning tools, drill
bits, reamers, milling cutters, drill bits, saw blades, frames in the glasses
industry.
2. Heat treatment: quenching and annealing of mechanical metal parts (surface,
inner hole, part, whole) such as gears, machine tool guides, hardware tools,
pneumatic tools, power tools, hydraulic parts, ductile iron, automobile and
motorcycle parts, internal parts, etc.
3. Medium Frequency Induction Annealing Equipment can do diathermy heating
before forging, forming, bending etc for standard parts, fasteners, large
workpieces, small hardware, straight shank twist drills, overall and partial
heat penetration and hot upsetting and hot rolling of twist drills, round steel
with a diameter of less than 100mm,
4. Heating and annealing before stretching, molding, embossing for pipe
bending, head smashing, steel wire (iron wire) , stainless steel products
annealing, stretching, expanding, thermal expansion, etc.
5. Medium Frequency generator add a melting furnace can do smelting for gold,
copper, silver, steel, and iron, aluminium etc.
MAIN FEATURES
1, Heating very fast, high production efficiency, less oxidative
denationalization, saving material and forging die costs.
2, The material utilization rate can reach 95% because the heating method heats
evenly and the temperature difference between the core surface is extremely
small
3, The life of the forging die is greatly increased in forging, and the surface
roughness of the forging is less than 50um.
4, No pollution to the working environment, thus improve workers' labor working
condition.
5, Low energy consumption: saving electricity cost.
6, Small in size, light in weight: very easy to move around.
7, Can attached to a infrared temperature controller for controlling very
precisely!
