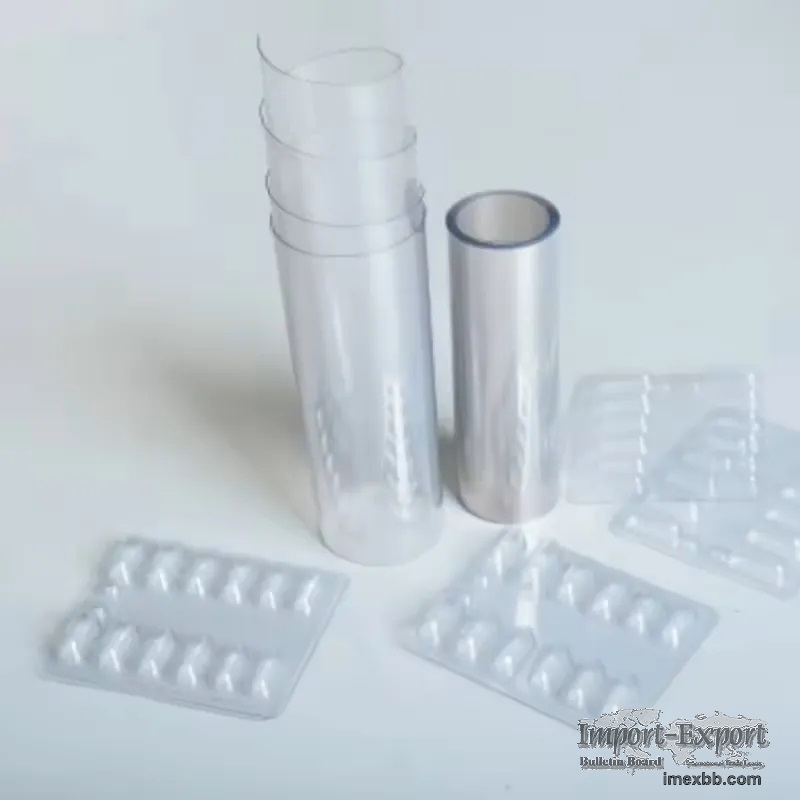

Medical grade transparent PVC/PVDC film suitable for pill blister packaging

Transparent PVC/PVDC film is widely used in pharmaceutical packaging due to its high
transparency and good barrier properties. Especially for blister packaging, it requires
the packaging material to have excellent barrier properties to prevent the drug from
being affected by moisture, oxidation or other external factors and becoming
ineffective.

PVDC can be coated on PVC film to obtain high moisture and oxygen resistance,
depending on the coating weight (40g/60g/90g/120g/180g). PVDC coated blister film
is the most common and popular barrier film used for pharmaceutical blister
packaging. PVDC coating is also the most economical way to add waterproof and
oxygen resistance to PVC film. PVDC blister film has 2-layer or 3-layer specifications,
called PVC/PVDC or PVC/PE/PVDC.

Advantages:

1. High barrier property: The PVDC layer can effectively prevent water vapor and
oxygen from penetrating, and is particularly suitable for drugs that are sensitive to
humidity and oxygen.

2. High transparency: Ensure good product visibility, making it easy for consumers to
view the contents of the package.

3. Good heat sealing: Good heat sealing with aluminum foil (PTP) ensures sealing
effect and prevents contamination and leakage.

4. High mechanical strength: Suitable for high-speed automated packaging
production lines, not easy to break or deform.

5. Strong chemical resistance: Suitable for a variety of drugs, including tablets,
capsules, soft capsules, etc.

6. Multiple specifications available: Choose different thicknesses and PVDC coating
weights (40g, 60g, 90g, etc.) according to drug protection needs.

Physical properties

Appearance: flat, uniform, clean. No holes. No foreign matter. No odor. No impurities.
No adhesion.
Water vapor permeability: ≤0.5g/(m2.24h)
Oxygen permeability: ≤0.5cm3/(m2.24h.0.1Mpa)
Sealing strength: ≥7.5N/15MM

Application areas:
Pharmaceutical packaging: such as blister packs for capsules, tablets, pills, etc.
Health care product packaging: used for vitamins, soft capsules and other products.
Food packaging: Some are used for packaging of moisture-sensitive foods, such as
candy or dehydrated foods.

Faq：
Q1: How to ensure the quality?
A1: Factory test certification is provided with shipment, third-party inspection is
available

Q2. What are the main products of your company?
A2: Our main products are aluminum, aluminum plate, aluminum foil, aluminum strip,
patterned plate, automotive plate, marine grade aluminum plate, household foil,
hydrophilic aluminum foil, bottle cap material, PVC hard sheet, pvc/pvdc composite
hard sheet, aluminum-plastic blister packaging, etc.

Q3: Where is your factory located?
A3: Our company's processing center is located in Xin'an Industrial Assemble Region,
Luoyang, Henan Province, China

Q4: What are the advantages of your company?
A4: We have many professionals, technicians, more competitive prices and best after-
sales service than other companies.

Minimum Order: 1 tons
