Media Retention Nozzle, wedge wire filter nozzle

A media retention nozzle is a precision-engineered filtration component that
retains filtering media in place while allowing fluid to pass through. These
nozzles are commonly installed in filtration systems where granular media
(such as sand, gravel, or activated carbon) or ion-exchange resins are
employed.

The media retention nozzle is integrated into the false bottom filter. The
false bottom refers to a supporting structure at the base of a filter
vessel, designed to hold filtration media in place and ensure liquid flow
through the system.

How Media Retention Nozzles Work
In a typical false bottom filter setup, the filter media lies above the
nozzles, which are embedded in a perforated or slotted plate. The nozzles
allow fluids (such as water or chemical solutions) to flow evenly through
the media bed, facilitating the filtering process, while preventing media
particles from escaping into the downstream system.

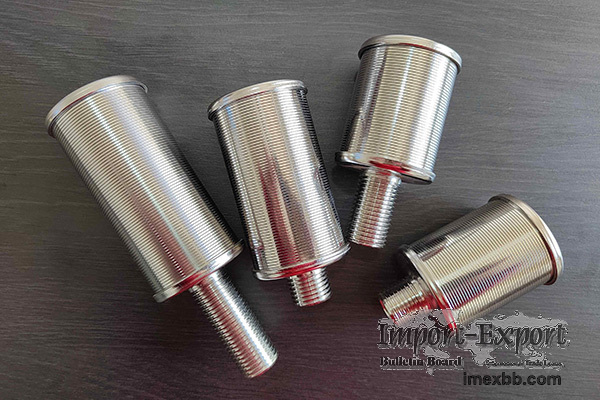

Each filter nozzle is manufactured with a wedge wire screen creating a
continuous and uniform slot. It acts as a physical barrier, keeping the
media particles larger than the openings in place. This design ensures that
the filter bed remains intact, promoting longer filter life and higher
efficiency.

Minimum Order: 10 sets
