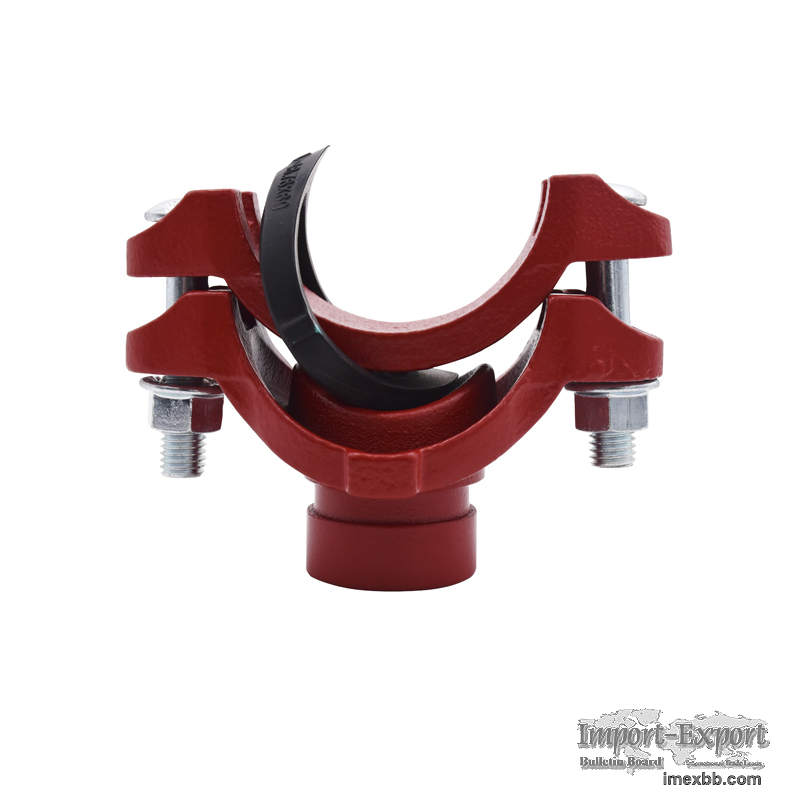

Mechanical-T Bolted Branch Outlet Style Victaulic Tee

SHORT DESCRIPTION
MECHANICAL-T BOLTED BRANCH OUTLET STYLE Victaulic mechanical tee as part of
grooved piping systems, use gaskets secured by housings to attach a new line of
pipe to an existing one. The mechanical force from the bolts and nuts combined
with the gasket and lubricant creates a tight seal around a hole drilled into a
run of pipe.
PRODUCT DETAIL
What is the difference between tee and mechanical tee?
The MECHANICAL-T BOLTED BRANCH OUTLET STYLE Victaulic Tee pipe fitting is used for
connecting pipes of the same diameter, while the reducing tee is used for
connecting pipes of different diameters. The branch diameter of the threaded
mechanical tee connection can never be equal to the main pipe diameter.

Yinuo is one of the grooved fittings manufacturers exporting to the international
market. The pipe fitting manufacturer serves the same function as the MT-1 and MT-
8 but uses a steel electro-plated U-bolt to save space for easier installation in
tight places. The MT-90 is ideal for direct connections with sprinkler heads and
drop nipples.
• Housing: ASTM A536 65-45-12 Ductile Iron
• Gasket: Pre-lubricated, Pressure responsive EPDM • Bolts & Nuts: Grade 5
• Compliance: UL® Listed, C-UL ® Listed, FM® Approved
• Maximum Pressure: 300 psi • Paint Color : Red (Optional as Galvanized -
GALV)

Minimum Order: 10 pieces
