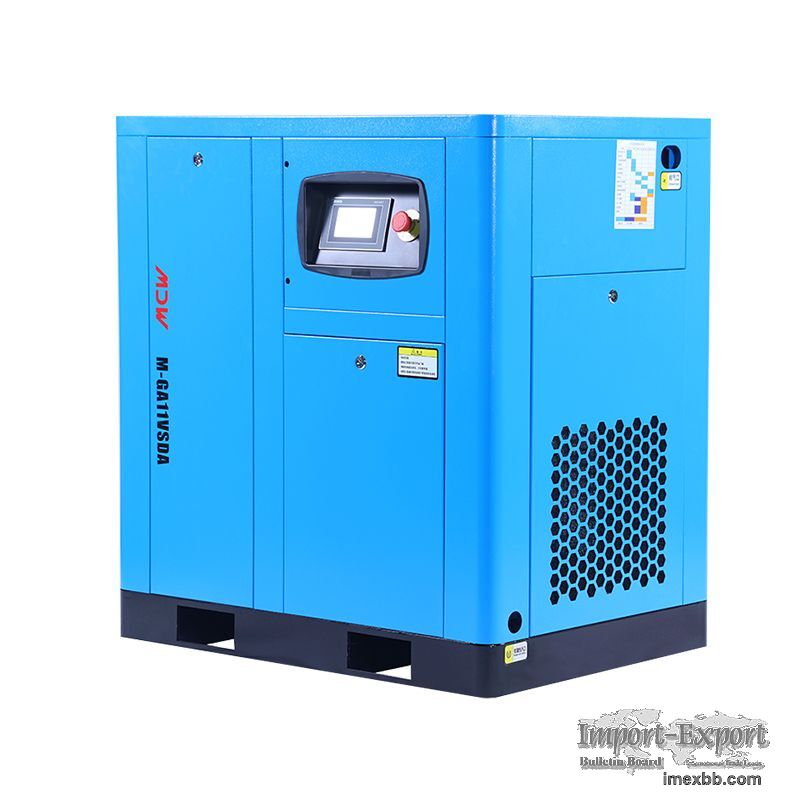

MDW-7.5KW/11KW Permanent Magnetic VSD Air Compressor used Printing and mold

The permanent magnet frequency conversion air compressor adopts high efficiency
VSD compressor, the average energy saving is up to 35%.
The body of the compressor is waterproof, dustproof and soundproof, with
protection class up to IP55.
The excellent performance and reliability of permanent magnet variable speed
air compressors are ideal for ensuring energy saving and sustainable
production.
Product Parameters
Power
KW Power
HP Pressure
MPa Volume flow
m³/min Start Mode Drive Mode Cooling  Compression Level
Noise
db(A) Voltage
V/PH/HZ Weight
KG Dimensions
(L*W*H）
mm Outlet Diameter
imch/mm
7.5KW 10HP 0.7 0.36-1.3 VSD Soft Start Integrated Direct Drive
Air Cooling Single stage 62±2 380V/50HZ 190 890*650*830
G3/4＂
0.8 0.33-1.1
1 0.28-0.95
11KW 15HP 0.7 0.51-1.7 VSD Soft Start Integrated Direct Drive
Air Cooling Single stage 62±2 380V/50HZ 280 1000*700*1000
G3/4＂
0.8 0.48-1.6
1 0.42-1.4
MDW-7.5KW/11KW Permanent Magnetic VSD Air Compressor used Printing and mold
Enlarge Click to Enlarge
