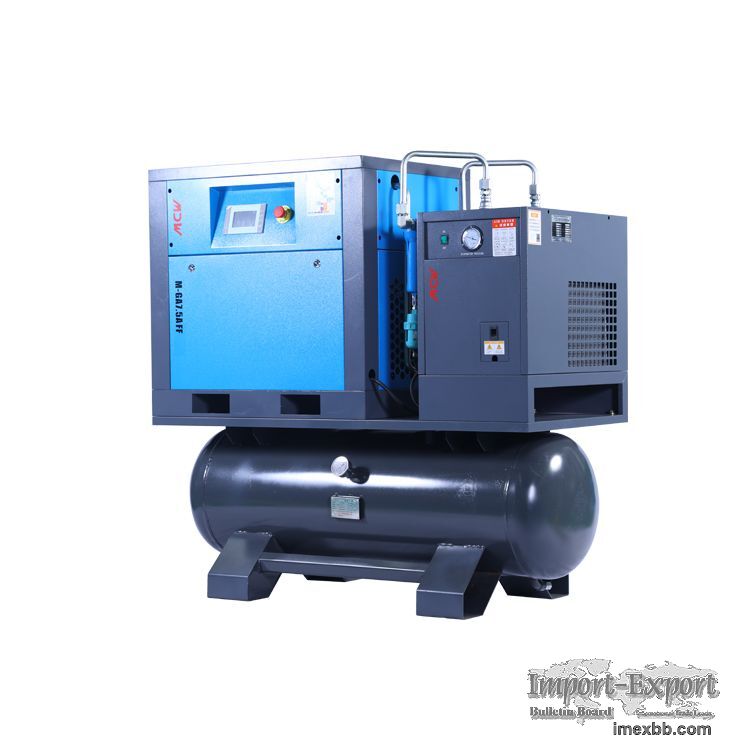

MDW-15KW 20hp All In One Fixed Speed Screw Compressor With Dryer

An Integrated Fixed Speed Screw Air Compressor is a highly efficient and
reliable solution for industrial air compression needs. Designed with a fixed-
speed motor, it ensures consistent airflow and pressure, making it ideal for
applications that require a steady and uninterrupted air supply. This type of
compressor integrates essential components such as the air dryer, air filter,
and oil separator into one compact unit, reducing installation space and
maintenance costs. Its robust construction guarantees long-term durability and
performance, even in demanding environments.
Product Parameters
Power
KW/HP Power
HP Pressure
MPa Air Delivery
m³/min Start  Mode Drive Mode Compression Level Noise
db(A) Voltage
V/PH/HZ Dimensions (L*W*H）
mm Outlet Diameter
imch/mm
15KW 20HP 0.8 2.2 Y- Direct Drive Single stage 68±5
380V/50HZ/3HP 1450*750*457 G3/4
