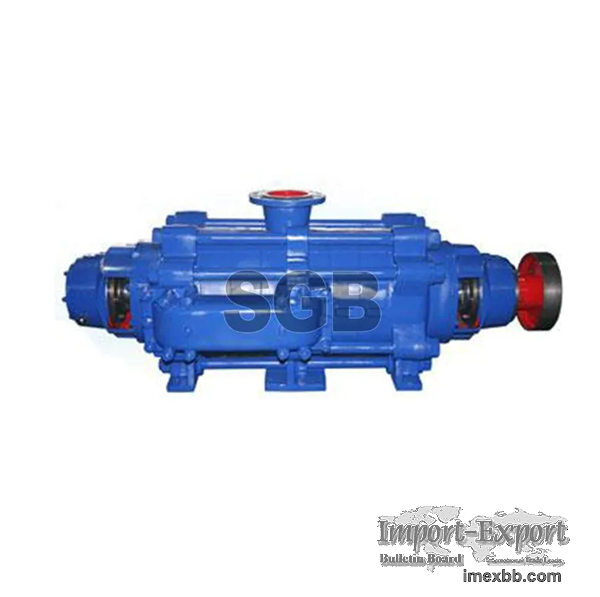

MD Series Anti-Abrasion Multistage Pump

The multistage pump is a centrifugal pump that combines the inlet and outlet
sections and the middle section through a tie rod. Its output water pressure
can be very large, and it also relies on the rotation of the impeller to obtain
centrifugal force to obtain materials. When the gas density reaches the working
range of the mechanical vacuum pump, it is pumped out, thereby gradually
obtaining a high vacuum.
- Single case, multilevel impeller, metal liner, horizontal centrifugal pump
- The Head reaching several hundred meters
- Wet parts such as casing, impeller, liner plate in anti-abrasion and
corrosion-resistant high chrome cast iron alloy.
Technical Specifications
Performance and main Technical Datas of MD Series Anti-Abrasion Multistage Pump
Type Allowable
max.power of
ass.motor(kW) Clear water
performance Particle max.
Size handled
occasionally
(mm) Pump weight
(kg)
Q
Capacity
(m3/h) H
Head
(m) n
Speed
(r/min) Max.eff.
(%) (NPSH)r
(m)
MD280-65 560 122-376 150-413 980-1480 69.1 6.5 20
2532
MD15-40×6 75 5.3-24 57.4-280.4 1480-2900 49 2.5
/ 1150
 Application
- Power plant ash-handling system
- Handling low concentration fluid with solid in coal, metallurgical, mining
and chemical sectors.
