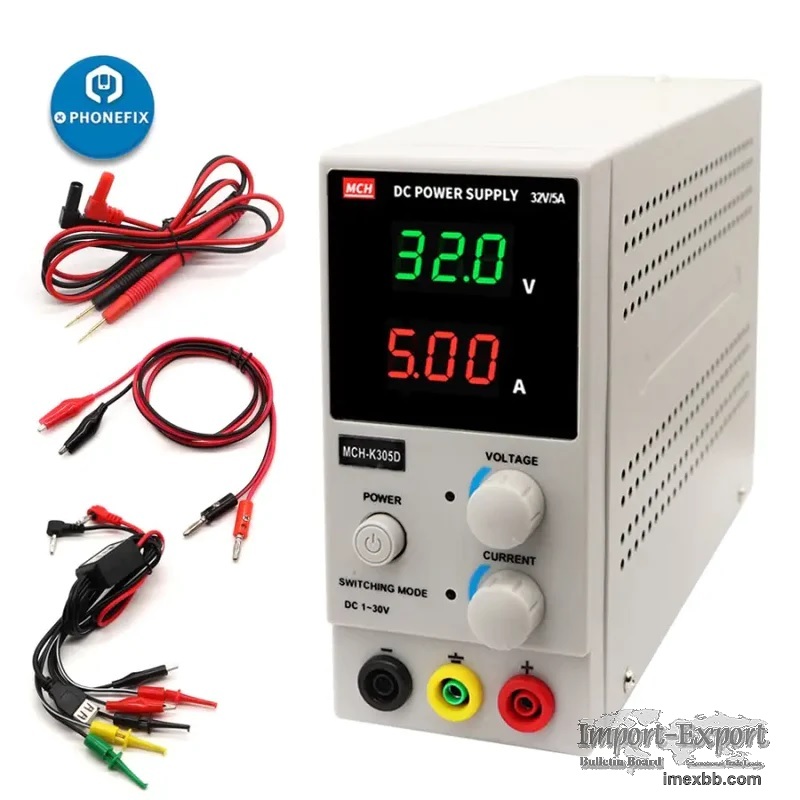

MCH-K305D K303D Mini Digital Adjustable DC Power Supply

MCH-K305D K303D Single Channel 0-30V 0-3/5A mini DC power supply, MCH-K305D
MCH-K303D SMPS have three digit dispaly and used in repairing mobile phone
and laptop. The switch DC power supply adopt special and mini design, small
size and light weight, so it is easy to operate. Regulated SMPS adopt full
efficient and reliable material.

MCH K305D / K305D Mini Digital Adjustable Switching Regulated Adjustable DC
Power Supply - Single Channel 30V 3/5A

MCH-K305D 0-30V 0-5A Three digit and MCH-K303D 0-30V 0-3A Three digit

Features :
This mini DC power supply adopt the multi coil high-precision positioner to
fine tune the current and voltage, and the ultra high sensitivity is
achieved.
High quality and good performance, adopt advanced chip technology,
intelligent cooling system. And it has longer service life.
It is made of rugged metal material,simple and elegant.
Both switch DC power supply is portable, small size and light weight, so it
is easy to operate.

Specifications :
Model No. : MCH-K305D MCH-K303D
Line Voltage: 110V/220VAC, 50Hz-60Hz
Input Current : 0.9A
Output Voltage Range: 0-30V
Output Current Range: 0-3/5A
Voltage Display Accuracy:±0.5%
Current Display Accuracy:±0.5%
Efficiency: >85%

Voltage Regulation :
Load Regulation(10-100%): 50mV
Line Regulation(200-240VAC): 20mV
Ripple & Noise(P-P) : 50mV

Current Regulation :
Load Regulation(10-100%): 20mA
Line Regulation(200-240VAC): 20mA
Ripple & Noise(p-p): 20mA

Others Specifications :
Operating Ambient: -10°C to + 60°C, 30%RH to 90% RH
Size: 7(W) x 16(H) x 22(D) cm
Packing Weight: 1.8kg


Parameters :


Input voltage: 104-127VAC(60HZ)
Power supply effect: CV≤0.01%+2mV CC≤0.2%+2mA
Load effect: CV≤0.01%+5mV CC≤0.2%+5mA
Protection: Current limit and short circuit protection
Operation environment: -10℃ to + 60℃, 30%RH to 90%RH
Ripple and noise(P-P): 20MA
Load adjustment degree(10-100%): 20MA
Line voltage adjustment (10-100%): 20MA
Efficiency: > 85%
Current display precision: ±0.5%
Voltage display precision: ±0.5%

Product display :
1. Materials is full efficient and reliable
Military-grade circuit board, advanced patch technology, seckill in-line
design. Adopting high-quality components, DC power supply is more efficient

2. Simple design but not simple functions
Ultra-simple shape design contains 20 years of rigorous and precise
production technology to maximize portability and achieve maximum
application with small machines.

3. Metal plastic, Rugged pressure
The selection of sturdy and pressure-resistant hardware material body,
thickness is about 2mm. The fuselage vents conform to the airflow principle.
Reject all counterfeit materials and refurbishment.

4. Super movement, Multiple protection.
The small model has a big effect. Compared with the large-volume power
supply, it has the same protection function and performance. The performance
linear power supply is higher, overload, over-voltage, over-current,
current-limit, multiple protection, and be relieved to use.

Package includes :
1pcs x DC Power Supply

Minimum Order: 1 pieces
