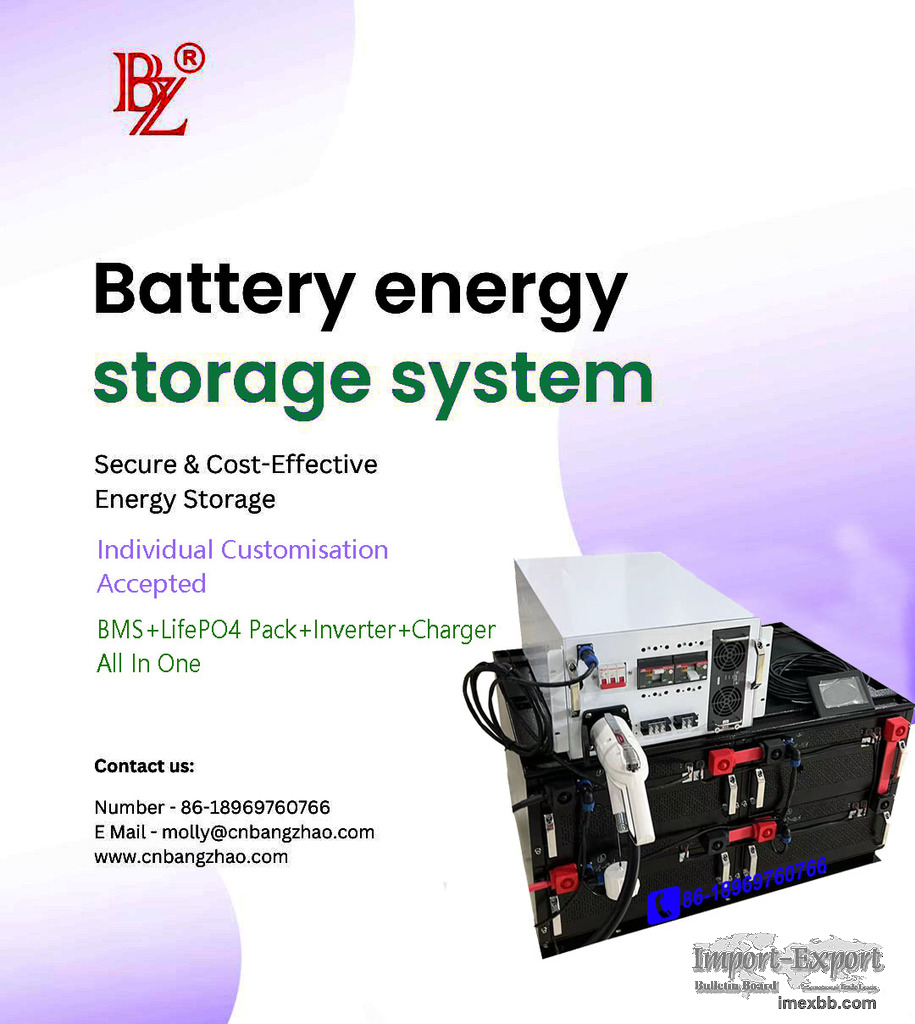

Master battery and Slave battery Modular stackable battery storage system

Master battery and Slave battery Modular stackable battery storage system
with BMS
https://www.alibaba.com/product-detail/Mast , er-battery-and-Slave-battery-
Modular_160076863 , 4168.html?spm=a2700.shop_index.89.4.7b4d7ffbGX3gEi ,
1. All-in-one design, high integration and space saving installation;
2. Using high-performance lithium iron phosphate cells, laser welding,
good cell consistency, designed service life of more than 10 years;
3. Charging and discharging are controlled separately, which is
convenient and reliable to control charging and discharging. The discharge
port will not be disconnected when over-charging, and the charging port will
not be disconnected when over-discharging, the system has good stability;
4. Master-slave mode, passive equalization, can manage the equalization
resistance, can set the equalization start voltage difference, and monitor
the equalization resistance temperature, more intelligent and safe, and
reduce the impact of barrel effect on system energy storage;
5. BMS adopts NXP(USA) automotive-grade high-performance chips, with
strong anti-interference, good reliability and wide temperature range;
6. CAN2.0 communication interface, has the advantages of strong real-
time performance, long transmission distance, strong anti-electromagnetic
interference ability;
7. System parameters can be set through the host computer, such as fan
start/stop temperature, charger maximum current setting, charge and
discharge current correction, SOC correction, with insulation leakage
detection function to prevent oil leakage and short circuit of the cell;
8. Integrate solar controller, AC charger, BMS communication control,
more safe and reliable;
9. Cell temperature management, can be automatically controlled with
the air conditioner heater according to the cell condition to make the cell
works at the most suitable temperature, and can be linked with the fire
protection system as needed

Minimum Order: 1 pieces

Click to Enlarge
