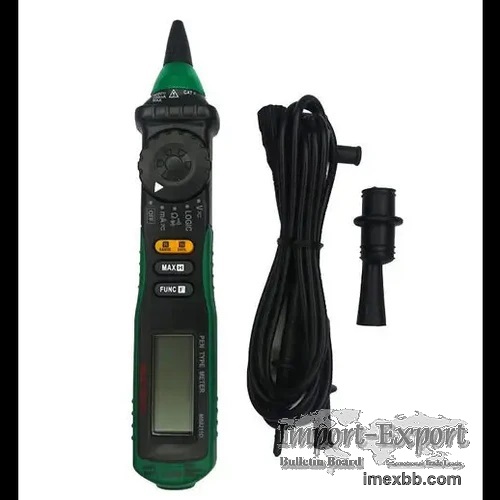

MasTech MS8211 Multimeter Circuit Measuring Meter Tester

MasTech MS8211 / MS8211D Multimeter Automobile circuit measuring repairing

MasTech MS8211 / MS8211D Auto meter is a portable professional measuring
instrument with handsome LCD easily reading. Single operation of a transform
switch makes measurement convenient. Overload protection and low battery
indication are provided, this meter is ideal for use in the fields,
workshop, school, hobby and home applications.

The difference between MS8211 and MS8211D

Optional Type :
Option 1: MS8211D: DC/AC Current test function, logic level tests
Option 2: MS8211: non-contact voltage detection (with led alarm)

Product Features :
Pen type design Automotive Multitester
Auto range and manual range
Built-in non-contact voltage detector, it is convenient to test the socket
or the lead whether is with power or not
Test AC/DC voltage, resistance
LCD display shows the measured value and the unit symbol
Retractable tip design
Diode check and continuity test
Data hold and MAX hold
Rotatable Probe Socket
Sensitivity adjustment knob
Auto power off

Product Specification :
Optional Type: MS8211 MS8211D
Range Accuracy
DC Voltage: 200mV/2V/20V/200V/600V ±(0.7%+2) ±(0.7%+2)
AC Voltage: 200mV/2V/20V/200V ±(0.8%+3) ±(0.8%+3) 600V ±(1.0%+3)
±(1.0%+3)
DC Current: 20mA/200mA ±(1.5%+3)
AC Current: 20mA/200mA ±(2.0%+3)
Resistance: 200Ω ±(1.0%+3) ±(1.0%+3) 2KΩ/20KΩ/200KΩ/2MΩ ±(1.0%+1)
±(1.0%+1) 20MΩ ±(1.0%+5) ±(1.0%+5)

Product Features :
Display counts: 2000 2000
Auto Ranging: TRUE TRUE
Manual Ranging: TRUE TRUE
NCV Non-Contact AC Voltage Detection: >50V AC TRUE
Logic Level Test >3.5V: High Level; <3.5V: Low Level TRUE
APO Auto Power Off TRUE TRUE
Diode 2.7V TRUE TRUE
Continuity Buzzer <50Ω TRUE TRUE
MAX Maximum Value Hold: TRUE TRUE
Data Hold: TRUE TRUE
Retractable Tip Retractable Tip for Safe Storage: TRUE TRUE
Power Supply: 2x1.5V AAA Batteries (not included)
Product Size: 208mmx38mmx29mm/8.26"x1.5"x1.1"
, Product Weight: 1.2g/0.22lb
Certificate: CE ETL CAT.II 600V RoHS
