Manufacturer Direct Sale HA101-600 Hydraulic Automatic Bollard

Manufacturer Direct Sale HA101-600 Hydraulic Automatic Bollard
● Dimension: φ400×1150mm
● Bollard diameter: 217±1mm，customized for 271mm diameter
● Bollard thickness: 6±1mm
● Height above ground: 600mm, customized for 700-800-900-1000mm height
● Rising time: 3.8s
● LED light: Yes
● Protection level: IP68
● Working temperature: -40℃ ~ +70℃
● Material: 304 stainless steel, optional of 316 stainless steel
● Color: customized

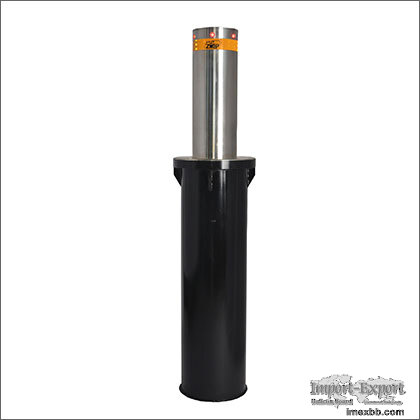

Automatic rising bollard HA101-600 is automatic barrier system for to control
traffic. Bollards integrated hydraulic ram inside, compare to traditional
rising bollard with hydraulic power unit, have easy installation, save budget,
after-sales easy maintenance several advantages, connect with control system
and main power could work then.

HA101-600 automatic bollard cylinder material is 304 stainless steel , assure
corrosion and rust resistance. Cooperated with SGS company, automatic bollard
passed series of performance tests to guarantee bollard stable work ability,
including continues 5000 lifting test, IP68 water proof and dust proof test,
temperature test etc.. According to different types, equipment lifting time
could range from 3 until 5 seconds. With emergency release system, power outage
or other emergencies, can be artificially lower, release vehicles.

Automatic rising bollard is suitable for high-frequency, high-security vehicle
access places. Applied to the district, pedestrian street, parks, scenic areas,
schools, fire exits, squares, car parks and other areas.
