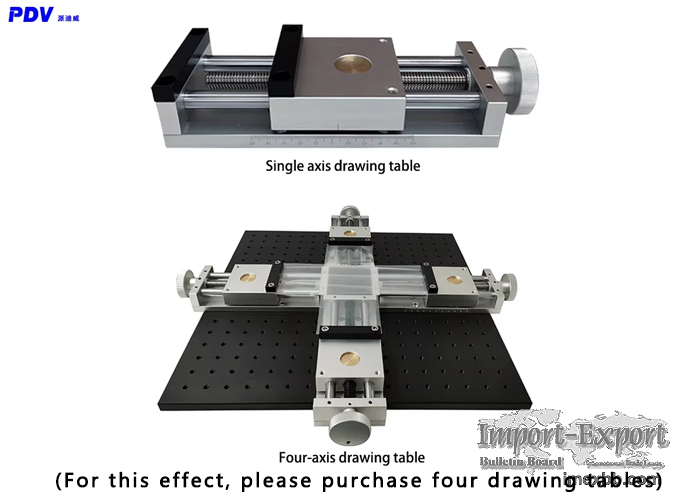

Manual Linear Stage , Precision Stretching Stage

Specification:
Lead: 3MM

Lead screw diameter: 14MM

Light bar diameter: 12MM



Model

PT-ST25
PT-ST50

PT-ST100

PT-ST200

PT-ST300

PT-ST400

PT-ST500

P , latform size

65x65mm
65x65mm

80x80mm

80x80mm

8 , 0x80mm

80x80mm

80x80mm

Trip

25mm

50mm

100mm

200mm

300

400

500

Lead Screw Pitch

1.25mm
1.25mm

3mm

3m , m

3mm

3mm

3mm

Load Bearing

15kg
20kg

20kg

20kg

20kg

20kg

20kg

Dead Weight

0.8kg
1kg

1.8kg

2.8 , kg

3kg

4kg

5kg

Materia , l Surface Treatment


6061 Aluminum Alloy - Black Or Anodized



Product details:
PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With
Platen

PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With
Platen

PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With
Platen

PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With
Platen

PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With
Platen



PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With
Platen

PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With
Platen



Advantage:
We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11
sets. We have a group of experienced high-level processing technicians. Our
products are sent to the Metrology Institute for random inspection every year
regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product
design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly
technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them
according to your requirements.

Minimum Order: 1 pieces
