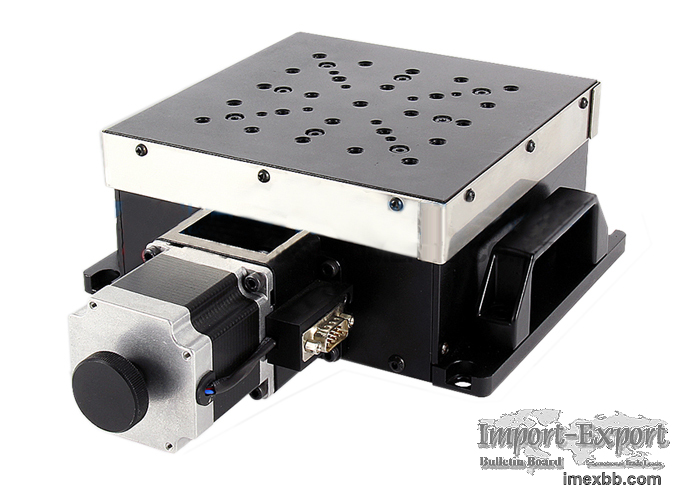

Manual Lab Jack Electric control vertical lifting table

Specification:
It is equipped with stepping motor and DB9 interface as standard



Precision screw drive, high resolution;



The guide rail adopts cross roller guide rail, which is comfortable in
movement, good linearity and large bearing capacity;



Wedge shaped lifting inner structure, low overall height, stable operation;



The vertical guide adopts precision linear slide guide, which has high
positioning accuracy and good stability;



The seal is made of stainless steel, heat resistant and laser resistant;



There are handles at both ends of the bottom of the lifting table, which is
convenient to move the position of the lifting table;



Replaceable ferromagnetic stainless steel countertop.

Model

PT-GD412

PT , -GD425

Platform Size（mm）

160×160

200×200

trip（mm）

12

25

resolvin , g power（8subdivision）

0.0005

Repea , t positioning accuracy（mm）

0.003

Screw lead（mm）

1

Standard motor

57 Stepper motor（1.8°）

static torque（N.M）

1.2

Rated working current

2.8

speed（2 to subdivide）

10mm/s

Central bearing（kg）

40

50

Weight

Minimum Order: 1 pieces
