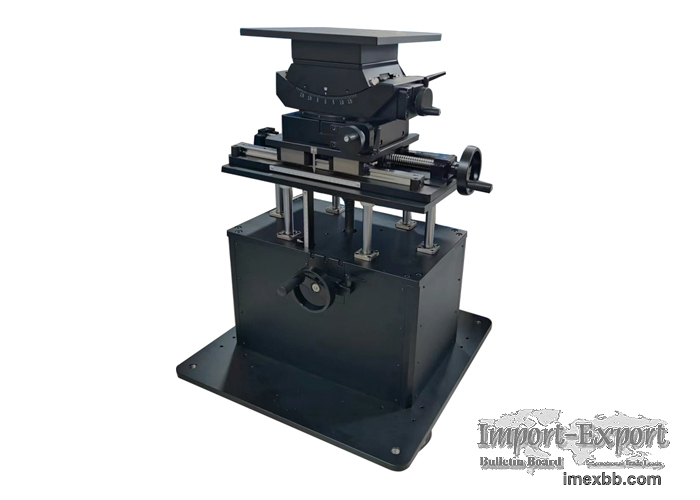

Manual four-dimensional adjustment platform translation

Specification:
Product parameters:


Control mode：

manual

Turntable weighing：

≥50kg

Azimuth axis:

0 ~ 360 rotation, the accuracy is 1, and the scale is marked according to the
accuracy of 1.

Azimuth axis:

-15 ~-15 with an accuracy of 1, and marked with a scale according to the
accuracy of 1.

Horizontal movement from left to right:

±100mm, with an accuracy of 1mm, and marked with a scale with an accuracy of 1
mm.

Lifting shaft:

The stroke is 200mm, the accuracy is 1mm, and the scale is marked with the
accuracy of 1mm.

Workpiece diameter:

300mm

Length:

550mm ,

Weight:

50kg

[Caster+foot support provided by the customer] The bottom mounting hole shall
be considered in the design.

Structure from bottom to top:

Lift-Translation-Azimuth-Pitch
