Manhole Type A

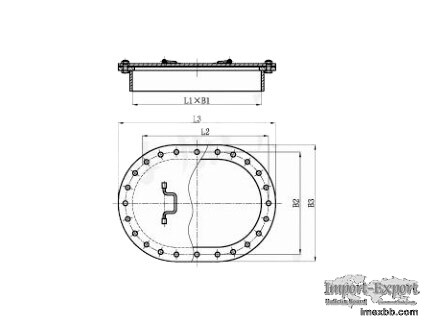

Drawing of Manhole Type A

Specification of Manhole Type A

Nominal dimension Opening Baseboard Cover plate Number of nuts
Reference weight
L B L1 B1 L2 B2 L3 B3
4535 450 350 480 380 550 450 620 520 20
52.9
5040 500 400 530 430 600 500 670 570 22
60.5
6040 600 400 630 430 700 500 770 570 24
69.5
6045 600 450 630 480 700 550 770 620 24
73.1

WAC is a professional anchor chain enterprises, we provide marine manhole, ship
manhole, lifting chain and etc. Want to know more? Please contact us.
