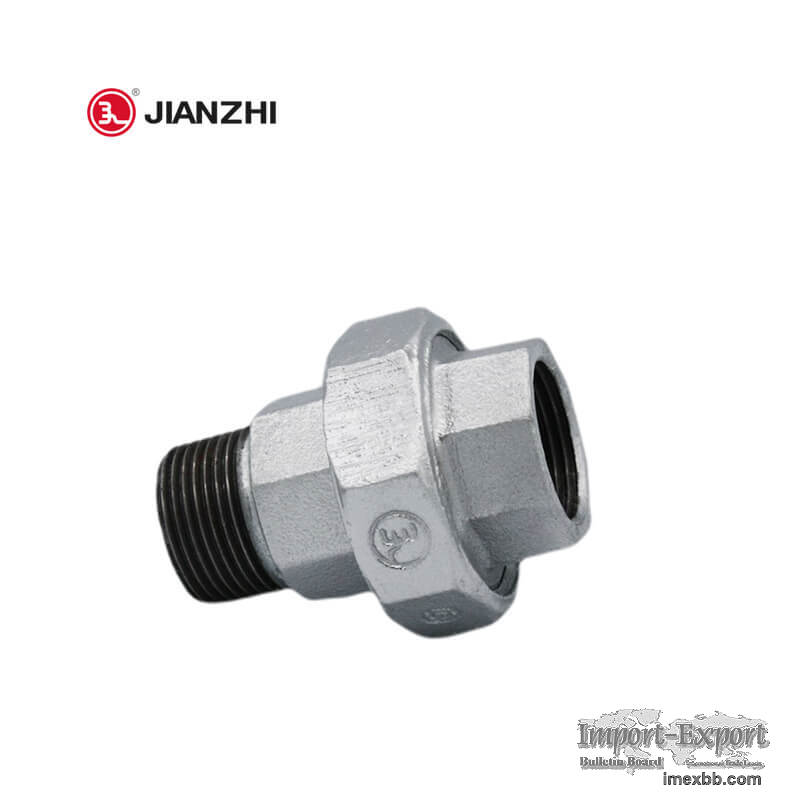

Malleable Iron Pipe Fittings Fig. 372

Malleable Iron Pipe Fittings Fig. 372
Size: 1/8''-6''(DN6-DN150) ,
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 /
BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554
/ BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Technical Data
Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 16%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron

JIANZHI Galvanized Pipe Fittings are available in various shapes, sizes, and
materials. Used to connect pipes of different lengths and sizes, these pipe
fittings and flanges should make the right connections. Pipe and pipe-fittings
are produced from various materials for the transport of a wide variety of
solids and fluids. The wrong pipe fittings can lead to many problems like:
-leaks
-unwanted flow restrictions and
-extra cost
The proper pipe fittings and flanges let your equipment do the work that you
intend it to do. The various types of pipe fittings include adapters, bulkhead
fittings, plugs, rigid couplings, flexible couplings, 90 degree elbows, 45
degree elbows, reducing elbows, flanges, nipples, concentric reducers,
eccentric reducers, side outlet tees, standard tees, reducing tees, bullhead
tees, unions, standard wyes, reducing wyes and many more. You should select the
right fitting for your application among the wide range of fitting types and
sizes offered.
Common points to consider:
The integrity of any fitting for proper functioning depends upon the following:
Selection of correct components or fittings appropriate for the application
Careful preparation and cleaning
Careful installation and assembly
Correct tightening and loading

Selecting Your Pipe Fittings:
The points to consider are as follows:
Consider the Tubing Used: For instance, barbed fittings work better in flexible
tubing while compression fittings work best with rigid tubing.
Determine Material Compatibility: Material selection plays a vital role in the
proper working of fittings. There are certain fluids that are not compatible
with fitting material and these fittings cause leakage or system damage. It is
very essential to check the material compatibility of your fluid with any
chemicals.
Check Temperature and Pressure Conditions: Appropriate temperature and pressure
ratings are needed for proper operating conditions. It is necessary to know
whether the fittings are capable of performing at their maximum temperature and
maximum pressure ratings because most fittings cannot perform both the task
simultaneously.

Pipe Thread Sizes:
This is a very important consideration for any pipe fitting. All pipes were
manufactured with the specification of a standardized outside diameter (OD) and
wall thickness which in turn implies that the nominal pipe size is
approximately equal to the inside diameter (ID). Nowadays, various thread
configurations are used. We give below an example of British Standard Pipe
(BSP) fittings for connecting systems that use both NPT and BSP thread
configurations. The table shows a comparison of these two thread styles.

To sum up: Selection criteria for buyers:
Materials
Pressure Ratings
Design and operation
Safety information
Temperature

Buyer's assistance:
Before purchasing pipe fittings and flanges, certain questions need to be
answered for that particular pipe fitting and the manufacturer who is
manufacturing that particular fitting. Some of these questions are as follows:
Can it handle the pressure?
Can it handle high temperatures?
Does it have proven long-term performance?
Are the joints or seals reliable?
Can it be fitted properly?
Does it have the confidence of manufacturers?
Can it withstand outdoor storage and ultraviolet rays?
Can it resist punctures and abrasion?
Does it have widespread approval and acceptance from inspectors and engineers?
Does it have quality and value?
The more the number of “YES”, the better is your product
