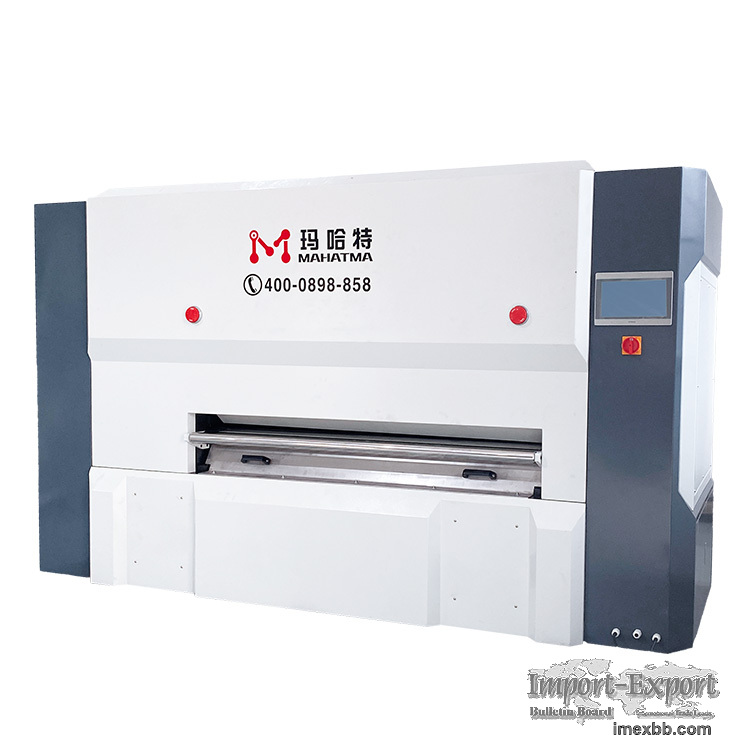

MAHATMA Leveling machine and straightening machine for thick parts

MHT100 Series sheet metal CNC precision leveler parameter table
Machine Model: MHT100-600-19 MHT100-800-19 MHT100-1000-19 MHT100-1300-19
MHT100-1600-19 MHT100-2100-19
Roller Diameter: φ100mm
Roller Number: 19
Nominal Leveled Width: 600mm 800mm 1000mm 1300mm 1600mm 2100mm
Rated Plate Thickness: (Q235)3~12mm
Max, Plate Thickness(Q235): 14mm
Shortest Workpiece: 165mm
Applicable Object: Coil, plane parts, sheet materials, etc

Function of Leveling machine

Under the condition of large elastic-plstic bending, no mater how
different the original bending degree, the CNC precision leveling machine uses
the "Bauschinger effect" of the material to bend the plate repeatedly,
gradually reduce the bending deflection, and gradually change the origina
curvature into a single curvature, and finally level it to achieve the leveling
accuracy required by the process.
After a series of alternating bending, the sheet metal is controlled by
the motor and the PLC to accurately control the lower pressure of each leveling
drum,elminating the internal stress, and fundamentally solving the
unsatisfactory leveling effect caused by the different stress in each part of
the sheet metal, thus achieving high precision leveling.

Minimum Order: 1 sets
