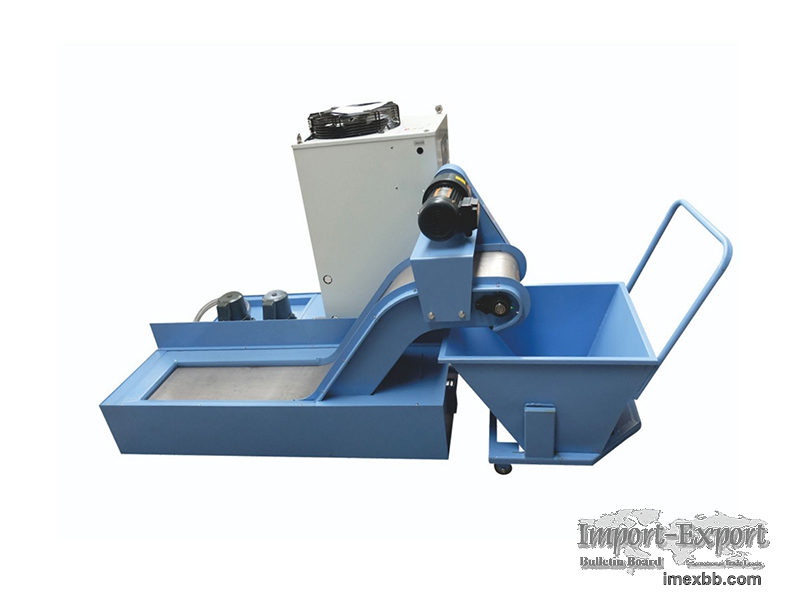

Magnetic Chip Conveyor

Magnetic belt conveyors offer a low-maintenance option for the transportation
of ferrous materials, including small chips, fines, small components, and
stamped blocks.
These conveyors are designed with a fully enclosed, submersible, and waterproof
structure. The magnets positioned beneath the stainless steel skids effectively
attract ferrous materials and particles, transporting them up the incline. With
no external moving parts, magnetic conveyors present a safe and easy-to-
maintain solution.
The magnetic force of the strong magnetic field generated by the permanent
magnet material is used to adsorb the chips on the working magnetic plate of
the chip removal machine, or the iron chips in the oil and the emulsion in the
form of particles, powders and the length of ≤100 mm are adsorbed and
separated, and transported to the specified chip collecting box. It is the most
suitable model for conveying small debris such as short roll chips, fine iron
chips and cast iron chips. The amount of chip removal can be adjusted by
changing the conveying speed and magnetic plate width. Production can be
customized according to customer needs.
Metal Chip Conveyor Features
Ideal for ferrous chips/fine chips, small parts and stampings
Submersible waterproof construction
Fully enclosed with no moving external parts
Special design for difficult wet fine particle applications
Self-adjusting chain tensioner
Heavy-duty stainless steel skids
Transport wet or dry materials at steep angles
Safety/Maintenance Friendly
Minimal maintenance required
Customized
Heavy-duty stainless steel top cover/sliding plate
Completely enclosed, no moving parts or belts to replace
Self-adjusting chain tensioner
Carries wet or dry material at a steep angle
Submersible waterproof construction
APPLICATIONS
Machine Tool Chip Removal
Parts Handling
Stamping
Scrap Handling
Sawing
