M718 8 Channel HDD Mobile Vehicle DV Rrecorder 4G GPS WIFI Optional For Sch

Product Description

HIS Solution,H.264 Compression

8Ch D1 input, 1Ch output
10-36V wide voltage with low power consumption
Large capacity hard disk storage, support 2.5” 2TB HDD, max 128G SD Card)
protect from Shock & Dust damage
6Ch Alarm Input, 2Ch Alarm Output
Support USB port data backup and device update
Support GPS/BD/G-Sensor Extension module
Realize real time monitor through 3G/4G
2Ch RS232, 1Ch RS485, Support Broadcast/Intercom/Text sent etc;Can add oil
sensor/temperature sensor/POS/LED Advertisement Panel
Computer mobilephone remote monitoring
A variety of operating mode, equipped with a remote control, convenient
operation


Technical Specification




Model M718AHD
System
OS Linux
Language Chinese/English/Customized
Video
Video Input 8CH D1 input, aviation connector, 1.0Vp-p, 75Ω
Video Output 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,8CH
Screen view
Video Compression H.264
Video Quality 1-4 levels, 1 is the highest level.
Video Standard PAL: 100f/s , CCIR625 line,50field;
NTSC: 120f/s, CCIR525 line,60field;
CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
720P: 4Mbps-6Mbps, multi level video quality optional
Audio
Audio Input 8CH Aviation Plug Input
Audio Output 2CH,headphone connect at front panel, BNC Connect on Back
panel
Audio Compression G.726 compression, 8KB/s speed
Display
OSD Overlays information such as date time and vehicle ID
Preview
Support 1 channel and 8 channels preview,

Support Manual / Alarm Trigger full screen preview

Graphical User Interface Setup system parameters with the remote
control.
Recording
Resolution D1/HD1/CIF, MAX:8 channels D1
Record Mode The default setting is auto recording after power on.Timed
recording, Alarm trigger recording and manual recording are supported.
Alarm
Alarm Input 6CH Alarm Input,1CH AD Input, impulse speed input, Alarm
Linkage
Alarm Output 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power
cut off
Playback
Search Mode Search By Record Time/Record Type etc
Playback Speed
Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play at the speed of: x 2,x4,x8,x16.

Network
Ethernet RJ-45 port
3G/4G/WiFi Optional
GPS Built-in high accurate GPS module(optional)
G-Sensor Support G-sensor
Storage
HDD + SD Card Max 2.5” 2TB HDD + Max 128GB SD Card
File System Special FAT32 File System
Update Support USB Updating, SD Card Updating, OTA Remote Updating
Auxiliary Interface
USB 1Port,USB2.0, USB Interface on Front Panel for data back up by U
Disk,Hard Disk
RS485 1 Port, For PTZ Camera
RS232 2 Ports, For POS/Fuel Sensor/LED Advertisement Connection
Voice Call Support voice call each other
TTS Voice Broadcast Support TTS voice broadcast function
Serial Expand Support LED Advertisement Panel, Oil Sensor, POS, Bus
Station Broadcaster, Car OBD, ect. external device
General
Voltage Input DC:+10V - +36V
Voltage Output +12V~1.5A,+5V~1.5A
Power Consumption Working <5W
Power Management Wide Voltage. Support Timed/Delay off
Temperature -20℃ - +70℃
Humidity 20% - 80%
Dimension 218 (D)* 161(W)* 65(H) mm
Net Weight 2.2 Kg

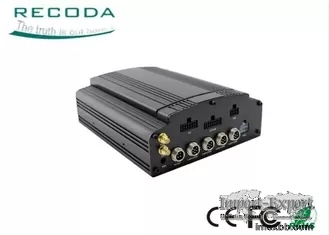

Mobile DVR detail pictures:
