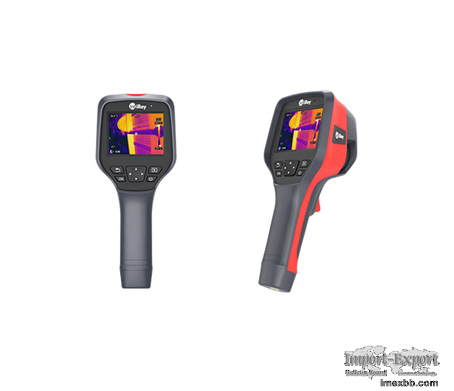

M600 Thermal Hand Scanner

thermal scanner handheld
M600 Handheld Thermal Camera is high-resolution and manually focused. It is
provided with a built-in self-developed 12μm high-performance 640×512
infrared detector and a 5,000,000-pixel visible light camera of 35 mK thermal
sensitivity and 30 Hz high frame rate. With its accurate manual focusing
function, it can save focusing time and provide accurate data and clear images
to meet the requirements of research and analysis work. With its excellent
characteristics, Tianxuan M600 Handheld Thermal Camera is the right-hand
assistant for engineers in scientific research, professional equipment, and
building inspection.

Thermal resolution: 640×512

Temperature resolution: 35mK

Measurement accuracy: ±2°C
Features of M600 Thermal Scanner Handheld
640×512 high-performance temperature measurement core

Real 320,000 real-time infrared temperature measurement points + 5,000,000-
pixel visible light resolution.

High resolution, high frame rate, high accuracy, wide range, all in Tianxuan
M600.

USB plug and analyze, support full-frame real-time transmission and analysis of
temperature information.

Advanced interaction function, visible display of temperature result

Three-point temperature display, custom point/line/area temperature
measurement.

Complete analysis data on PC, easy to operate the APP.

Built-in 5 image modes+10 color palettes.

Support full-frame high/low temperature alarm and timed photographing.

Easy-to-use and reliable overall performance

Solid and durable, IP54 + 2m-drop protection.

Video of M600 Thermal Hand Scanner
Specifications of M600 Thermal Hand Scanner
Model M600G
Detector Type Uncooled VOx IRFPA
Detector Resolution 640x512
Spectral range 8-14μm
Pixel pitch 12μm
Thermal sensitivity/NETD 35mK
IFOV 1.31mrad
Frame rate 25Hz
Focal length 9.1mm
FOV 48°x38°
Focus mode Manual focus
Temperature measurement range -20 ℃～ 150 ℃ , 100 ℃～ 550 ℃
Measurement accuracy ±2% or ±2℃
The Min. measurable temperture difference 0.1°C
Measurement  mode Center spot/hot and cold spot tracking and temperature
display
Custom temperature measurement tools Movable spot/line/area temperature
measurement, up to 10 spots, 10 areas,10 lines
Temperature measurement  unit Celsius, Fahrenheit, Kelvin
Emissivity settings 0.01-1.00，step length 0.01
Ambient temperature settings -10~50℃，setp length 1℃
Distance settings 1-20m，setp length 1m
Digital zoom 1×, 2×, 4×, 8×
Image mode Thermal, dual-spectrum fusion, visible light, PIP
Color palettes 10 kinds
Temperature alarm Support
Alarm type Image alarm
Temperature Scale Auto/Manual
Laser Pointer Yes
Digital camera 5MP
Image/video Storage Jpg images with  temperature data in thermal and
visible light modes；
H.264 videos without temperature data
Voice annotation Yes
Language English, Polish, Russian, Korean, Hungarian, Brazilian
Portuguese, German, French, Spanish, Italian, Turkish, Traditional Chinese
Screen 3.5-inch touch screen（480x640）
Image naming Auto/manual input, QR code scanning
Memory card standard 32GB MicroSD card
Battery type Rechargeable and detachable Lithium battery
Power interface USB Type-C
Data Communication Interfaces USB, WiFi
Charging time about 3h
Battery operating time about 3h
Power Management Interfaces Auto shutdown: 5 minutes, 10 minutes, 20
minutes, off)
Analysis software PC（Infrared analysis software）or mobile （IOS/Android
APP）
Tripod mounting interface 1/4″-20-UNC
Operating temperature range -10~+50°C
Storage temperature range -20~+60°C
RH 10% ~ 95%,no condensation
Drop 2m
Encapsulation IP54(IEC 60529)
Shock &Vibration Shock 25g(IEC 60068-2-27)；Vibration 2.5g(IEC60068-2-6)
Camera Dimension（LxWxH） 258.4 × 105.1 ×102.3mm
Weight about 670g
Standard accessories
5V 2A power adapter(with various plugs to fit global regions), USB cable, SD
card, battery×2, QSG, battery charger, calibration certificate, packaging
list,hard transport case

As one of thermal imaging camera manufacturers, we will do our best to meet all
the needs of customers.

Minimum Order: 5 pieces
