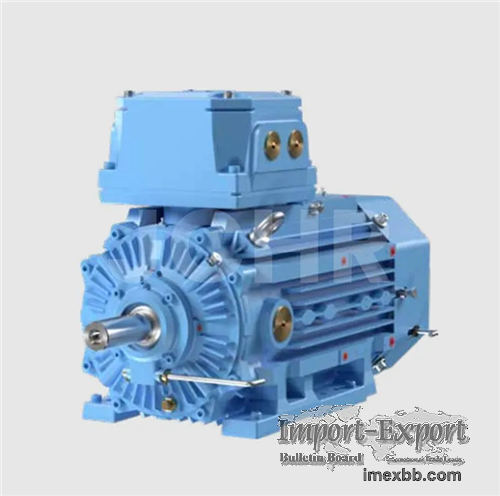

M3JP High Efficiency Flameproof Three-Phase Asynchronous Motor

The M3JP high-efficiency flameproof motor developed through ABB's global
unified design platform and leading modular design (ADEPT) is a low-pressure
cast iron high-performance flameproof motor for hazardous environments. It is
the flagship product of ABB low-voltage motors and has the advantages of ultra-
high energy efficiency and extremely high reliability. It can meet the high
energy efficiency requirements of the petrochemical industry for motors and can
provide solutions according to special customer requirements.

Product Advantages
• High reliability - ABB's highest quality grade, suitable for harsh
requirements and continuous operation with a design service life of up to 30
years
• High efficiency and energy saving - in line with IEC International
Electrotechnical Commission IE3/IE4 high-efficiency motor standards
• Suitable for Ex db IIB T4 explosion-proof environment, optional Ex db IIC T4,
Ex tb IIIC T130℃ Db explosion-proof level
• Low vibration
• Low noise
Technical parameters
Frame height  80-355mm
Output power  0.18KW -355kW
Energy efficiency grade  IE3/IE4
Number of poles  2, 4, 6, 8 poles
Insulation  B3, B5, B35, etc.
Frame material  cast iron
Insulation grade and temperature rise  F/B
Protection grade  IP55
