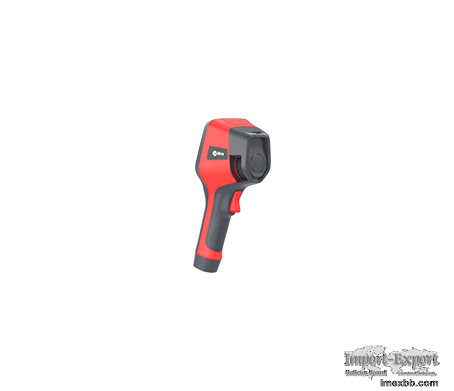

M300 Handheld Thermal Camera

Check clearly, solve quickly. Built-in 110,000-pixel VOx infrared detector,
optimized circuit, MatrixIII intelligent image processing algorithm, and
patented measurement algorithm work together to provide clearer temperature
images as well as more accurate and stable temperature measurement data;
intelligent touchscreen, manual focusing lens, dual-spectrum, and multiple
analysis functions ensure accurate test results and efficient analysis,
diagnosis, and processing.

Measurement range: -20°C~+550°C

Image mode: thermal imaging, thermal fusion, visible light, PIP

Infrared resolution: 384×288

Pixel size: 12μm

Focal length: 6.2mm
Features of M300 Handheld Thermal Imaging Device
Better performance makes M300 greater

With 384×288 thermal resolution, thermal sensitivity of 0.035℃, and 44 °
FOV, M300 can display rich details that low resolution products cannot, and
makes sure the abnormal temperature targets were not missed.

Manual focusing provides clear images of targets from far to near, especially
for observing tiny near targets.

3.5" LCD HD (640×480) capacitive touch screen, brightness adjustable, easy to
observe and analyze.

Measurement range up to -20°C~+550°C. From building detection to automotive
maintenance, it is adaptive to various scenes and purposes. There is no need to
switch equipment, to ersave costs, and improve efficiency.

Powerful image fusion function with the 5-megapixel visible light camera
provides more comprehensive and richer information, easier for observation
under complex conditions.

Intelligent analysis. Discover more within the image

Support WiFi transmission. After connected to mobile phone APP, it can analyse
and share thermal images and temperature data at any time and anywhere.

Intelligent PC analysis software supports the resetting of the measurement
parameters. Click to form the detection report, convenient for data sorting,
analysing, and mining.

Professional design, expert's choice, choose to be an expert

It supports both screen-touch and button operation. The touch panel is clear to
see, easy to use, and convenient to analyse the data. The physical buttons are
user-friendly and convenient to operate with gloves.

The operation interface is clear and user friendly. It can be easily operated
without training.

It needs only one button to take photos or videos. Voice annotation is
supported to perfectly restore the scene and simplify the complicated work
procedures.

The large capacity 4500mAh battery in M300 is designed to be quickly
detachable. Each M300 is shipped with two batteries and a charging dock, to
meet heavy daily usage.

3.5-inch LCD high definition (640×480) capacitive touch screen, with
adjustable screen brightness, is more convenient for observation and analysis.

Compact and robust design with IP54 protection and 2m dropproof. All these are
to ensure you can work without worry.

Dual modes support hand-held operation and fixed operation on the tripod,
flexible and reliable.

Laser pointer can locate targets quickly and accurately, improving inspection
efficiency.

Built-in high/low-temperature alarm supports user-defined alarm temperature.

Video of M300 Handheld Thermal Camera

Applications of M300 Handheld IR Camera

Specifications of M300 Handheld Thermal Camera
Model M300G
Detector Type Uncooled VOx IRFPA
Detector Resolution 384x288
Spectral range 8-14μm
Pixel pitch 12μm
Thermal sensitivity/NETD 35mK
IFOV 1.98mrad
Frame rate 25Hz
Focal length 6.2mm
FOV 43.7°x31.9°
Focus mode Manual focus
Temperature measurement range -20 ℃～ 150 ℃, 100 ℃～ 550 ℃
Measurement accuracy ±2% or ±2℃
The Min. measurable temperature difference 0.1°C
Measurement  mode Center spot/hot and cold spot tracking and temperature
display
Custom temperature measurement tools Movable spot/line/area temperature
measurement, up to 8 spots, 8 areas, 8 lines
Temperature measurement  unit Celsius, Fahrenheit, Kelvin
Emissivity settings 0.01-1.00, setp length 0.01
Ambient temperature settings -10~50℃, setp length 1℃
Distance settings 1-20m, setp length 1m
Digital zoom 1×, 2×, 4×
Image mode Thermal, dual-spectrum fusion, visible light, PIP
Color palettes 7 kinds
Temperature alarm Support
Alarm type Image alarm
Temperature Scale Auto/Manual
Laser Pointer Yes
Digital camera 5MP
Image/video Storage Jpg images with  temperature data in thermal and
visible light modes；
H.264 videos without temperature data
Voice annotation Yes
Language English, Polish, Russian, Korean, Hungarian, Brazilian
Portuguese, German, French, Spanish, Italian, Turkish, Traditional Chinese
Screen 3.5-inch touch screen（480x640）
Image naming Auto/manual input, QR code scanning
Memory card standard 32GB MicroSD card
Battery type Rechargeable and detachable Lithium battery
Power interface USB Type-C
Data Communication Interfaces USB, WiFi
Charging time about 3h
Battery operating time about 4h
Power Management Interfaces Auto shutdown: 5 minutes, 10 minutes, 20
minutes, off)
Analysis software PC（Infrared analysis software）or mobile （IOS/Android
APP）
Tripod mounting interface 1/4″-20-UNC
Operating temperature range -10~+50°C
Storage temperature range -20~+60°C
RH 10% ~ 95%, no condensation
Drop 2m
Encapsulation IP54(IEC 60529)
Shock &Vibration Shock 25g(IEC 60068-2-27)；Vibration 2.5g(IEC60068-2-6)
Camera Dimension（LxWxH） 258.4 ×105.1 × 102.3mm
Weight about 670g
Standard accessories 5V 2A power adapter(with various plugs to fit global
regions), USB cable, SD card, battery×2, QSG, battery charger, calibration
certificate, packaging list, hard transport case

If you want to know more kinds of industrial wireless temperature monitoring
system, please visit our website.

InfiRay® is a developing and manufacturing company that devotes in infrared and
thermal imaging industry. Our products and solutions are competitive for
professional use thanks to their completely independent intellectual
properties. Infrared detectors, thermal camera cores and modules, and thermal
cameras and imagers for terminal applications are our major products, which
have been sold to 89 countries and regions all over the world.

Minimum Order: 5 pieces
