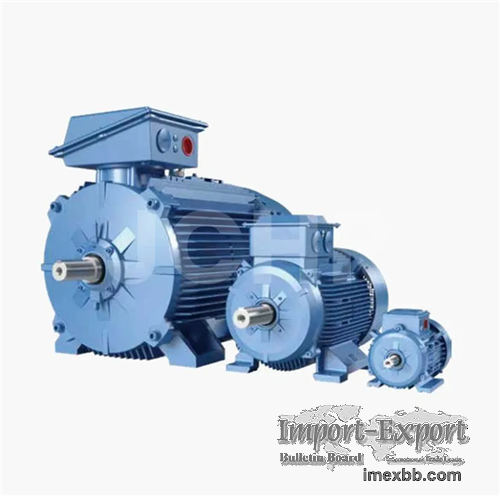

M2BAX - Low Voltage General Performance Motors

M2BAX - Low voltage general performance motors are ABB high efficiency
products. ABB M2BAX Motors are designed for both the Chinese market and export.
Product development is on ABB strong R&D platform. The design is in line with
international IEC standards and China local GB standards. The efficiency level
reaches IE3 and IE2, equivalent to Grade 2 and Grade 3 (GB18613-2012).
ABB M2BAX Motor is specially designed for OEM customers, mainly integrated with
fans, pumps and gear boxes. Main applications include Water & Waste water
treatment, HVAC, Food & Beverage, Textile, Power, Pulp & Paper, Metal and
others industries. The high quality of ABB Electric Motors and the excellent
service of ABB continuously make value for the customers.
Technical Parameters：
Machine base height  80-355mm
Output power  0.18KW -315kW
Energy efficiency class  IE2/IE3 /IE4
Number of poles  2, 4, 6, 8 poles
Installation  B3, B5, B35, etc.
Machine base material  cast iron
Insulation level and temperature rise  F/B
Protection grade  IP55
