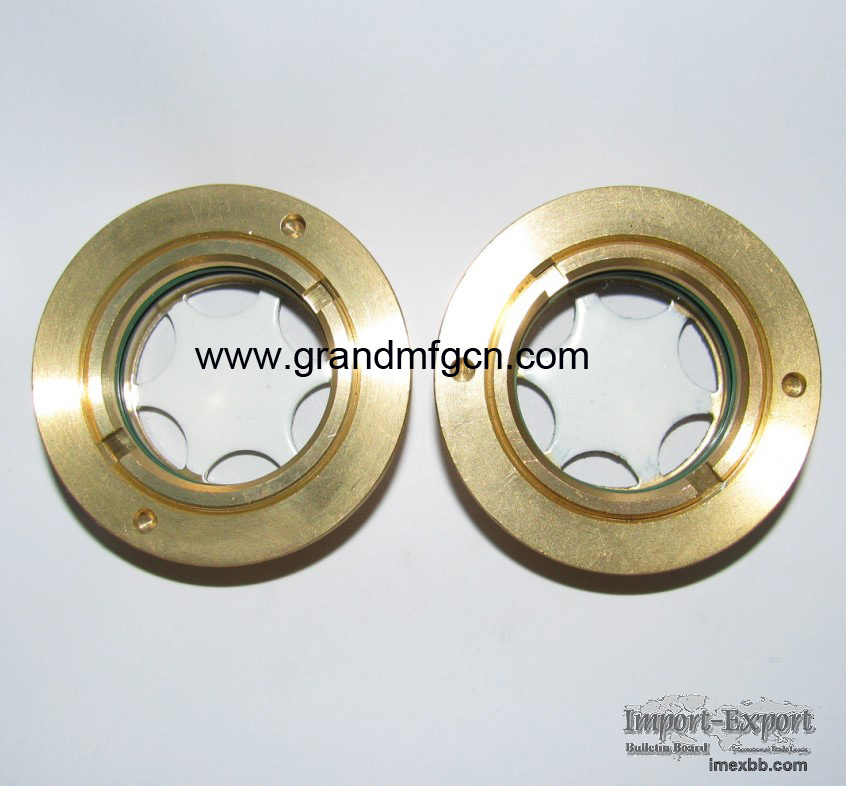

M26x1.5 BRASS BULL'S EYE OIL SIGHT GLASS Ölschauglas for SCREW Compressor

GrandMfg® Brass Oil level sight glass for air compressor


Material Body: Brass

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector,
You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are
welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power
Transimission.

Minimum Order: 2000 pieces
