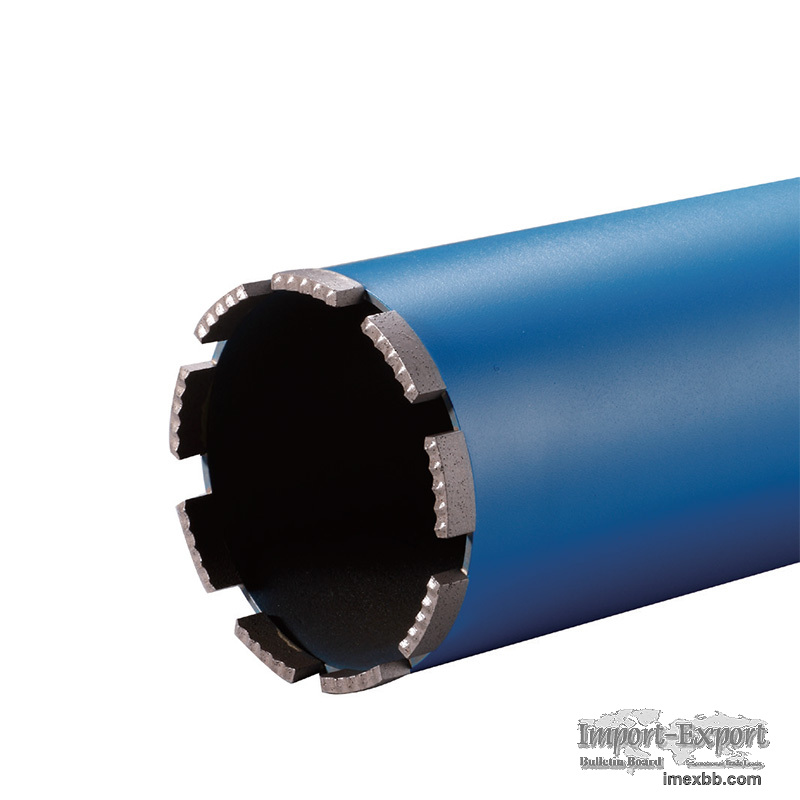

M type segment diamond core bit

1.Product Introduction of the M type segment diamond core bit
Our M type segment diamond core bit makes core drill working very efficient.
Laser welded segments - segments are attached to the tube by laser welding
to minimise the risk of segment loss. In the meantime the complete barrel
guarantee a good concentricity. We have different recipe of segment
according to different application. We have various size from diameter 10mm
until Diameter 1000mm. We can drill reinforcement concrete, hard bricks,
 even steel . Widely used in angle grinder, drilling machine, electrical
drill and hydraulic equipment. Both OEM and ODM are available.
2.Product Parameter (Specification) of the M type segment diamond core bit
Product Feature And Application of the M type segment diamond core bit
Our M type segment diamond core bit used to drilling Heavy reinforcement
concrete , standard concrete and brick wall ,Asphalt. The Segment length
24mm/0.935” Working length 400mm/16” Segment width 3-5.0mm/0.118-0.165”
Over length 450mm/18”. We can produce the diamond core drill with customer
required size.
3.Product Details of the M type segment diamond core bit
BSP tools manufacture provide M type segment diamond core bit is mainly
diameter from 25-132mm for construction market. The Segment height could be
10mm. The core bit thread is 1/2BSP, 1-1/4UNC or 5/8-11. BSP TOOLS Special
length and segment shape are available which is according to the customer
request .
