LTE module U9507E-C1 MINI PCIE 4G FDD LTE module

U9507E-C1-P is a wireless LTE CAT1 module which is designed for the global
market. It is a consumptive product; It can be designed in many kinds of
applications which can work on LTE-FDD/WCDMA/GPS/GLONASS(Optional) network.
On LTE-FDD network, U9507E-C1-P enables connect to the Internet at DL data
speed up to 10Mbps and UL data speed up to 5Mbps, in the area where LTE
service are not available, U9507E-C1-P still enables reliable and secure
data connect over WCDMA network.
U9507E-C1-P provides SMS, MMS, Phonebook functions as well as high speed
access, and also audio function. It can be designed in many kinds of
applications. Such as Data card, Video monitor, Tablet, Electric-book, MID,
Vehicle equipment, etc.

General features

* Output power:
- Class 3 (0.25W) for LTE/WCDMA
* Control via AT commands
(3GPP TS27.005/3GPP TS27.007 )
* Supply voltage range: 3.3V- 4.2V
* Low Power consumption
- Sleep mode: 5mA
- Power down: 50 μA

* Dimensions: 51.0 X 30.0X 4.6 mm
* Operation Temperature:-40°C to +85°C

Band Configuration

* LTE-FDD Band 1/3/5/7/8/20/28
* WCDMA Band 1/5/8

Specifications for GPS

* GPS frequency: 1575.42MHz
* At least support 44 channels
* Location accuracy: ＜10m
* Sensitivity
- Acquisition: -158dBm
- Tracking: -162dBm

* TTFF:
- Cold Start: 60s
- Warm Start: 45s
- Hot Start: 15s

Interfaces

* RF connector
* PCI Express® Mini Card Interface
- Power supply
- USB 2.0 high speed
- SIM/UIM card interface 3 V, 1.8 V
- UART
- Analog Audio
- PCM
* Antenna interface

Specifications for data

* Support Release 9 Category 4
* LTE-FDD up to 10 Mbps DL,5 Mbps UL
* WCDMA up to 42.2Mbps DL,5.76Mbps UL
* Transparent mode
* PBCCH support
* PPP-stack
* Coding schemes CS 1,2,3,4
* FOTA
* TCP/IP
* NDIS

Specifications for SMS

* Point-to-point MO and MT
* SMS cell broadcast
* Text and PDU mode

GLONASS(Optional):

* GLONASS frequency: 1601.7MHz
* At least support 44 channels
* Location accuracy: ＜10m

* Sensitivity
- Acquisition: -155dBm
- Tracking: -160dBm

* TTFF:
- Cold Start: 60s
- Warm Start: 45s
- Hot Start: 15s

Additional features

* VoLTE
* Phone book
* PCM
* DTMF

Approvals

* RoHS
* CE
* GCF

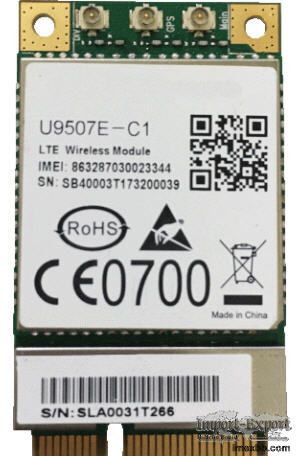

LTE module U9507E-C1 MINI PCIE 4G FDD LTE module
