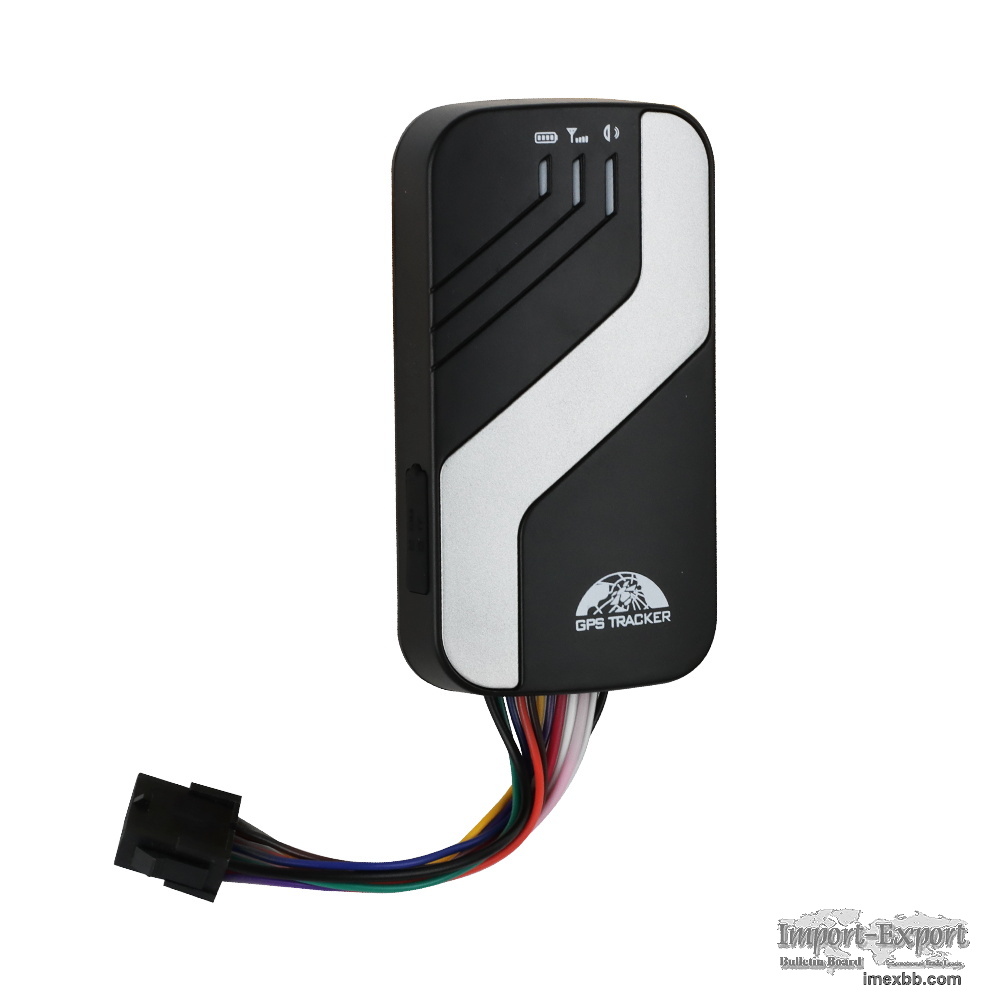

LTE 4G motor vehicle gps tracking device with ACC anti-theft alarms oil

Top Quality IP66 Waterproof Tracking Devices gps403 4G Mini
Motorcycle/Vehicle GPS Tracker

 For car & Motorcycle tracking

1    9.6×5.3×1.8cm , 70g
2    Band :
      2G   1900/1800/900/850 MHz
      4G   B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B40"
3    350mAh rechargeable battery
4    SOS / Microphone
5    Cut off engine
6    Support fuel sensor
7    Door open /shock /movement /GEO fence alerts
8    Free tracking platform
9    Free mobile app
10    Internal memory 100KB

1, Summary
This tracker is a new product based on the LTE/ GSM / GPRS network and
GPS satellite positioning system, which set multiple functions of
security, positioning, monitoring surveillance, emergency alarms and
tracking in its entirety. It can track and monitor remote target by SMS
or internet.
Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft GPS car
tracker Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft
GPS car tracker


2, Specifications

Content
Specification

DIM
9.6×5.3×1.6cm

Weight
70g

Network
GSM/GPRS/LTE

Band
4G (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B40)
2G (1900/1800/900/850 MHz)

GPS sensitivity
-159dBm

GPS accuracy
5m

GPS start time
Cold status  45s
Warm status  35s
 Hot status  1s

Car power supply
12 V -24V

Back up battery
Chargeable 3.7V 350mAh Li-ion battery

Storage Temp
-40°C to +85°C

Operation Temp.
-20°C to +65°C

Humidity
5%--95% non-condensing


3, Features and Functions:
GSM/GPS LED Indicator
Initialization
Change Password
Authorization
Single Locating

Auto track continuously
Automatic update positions of vehicle turns
GPS drift suppression
Absolute street address by SMS
Location based service (LBS)
Data logging
Data Load
Forward the third parties' message
Charges Inquiry
Alarm Function
Low battery alarm
External Power off alarm
GPS blind Spot alert
SOS
Geo-fence
Multi-area management
Movement alarm
Over speed alarm
ACC working alarm
Alarms under Arm State
1 ACC alarm
2.Shock Sensor alarm
Alarm without GSM network service
Check the Vehicle State
Reset Hardware
Sleep Mode
1 Sleep by time
2 Sleep by shock sensor
3 Deep Sleep by shock sensor
4 No sleep mode
Scheduled wake-up
Check IMEI
Set up Terminal (local) Time
TCP / UDP Switch
Configure parameters by USB
GPRS setting
Less GPRS traffic
Modes Switch between "SMS" and "GPRS"
Set up monitor center number
Cut off the Oil and Power System

Packaging Detail:
GPS unit
12PIN harness
Microphone
Relay
Manual
Giftbo , x
Remote controller ( only for model 403B)

Optional
Alarm siren(big or small both ok)
Fuel sensor


4, FIVE tracking solutions:

1. SMS tracking by calling with latitude and longitude, speed, battery
status, Google map link
2. Get absolute street address by SMS
3. Free web tracking application
4. Optional web server
5. Free mobile tracking app for phone app

Minimum Order: 1 sets
