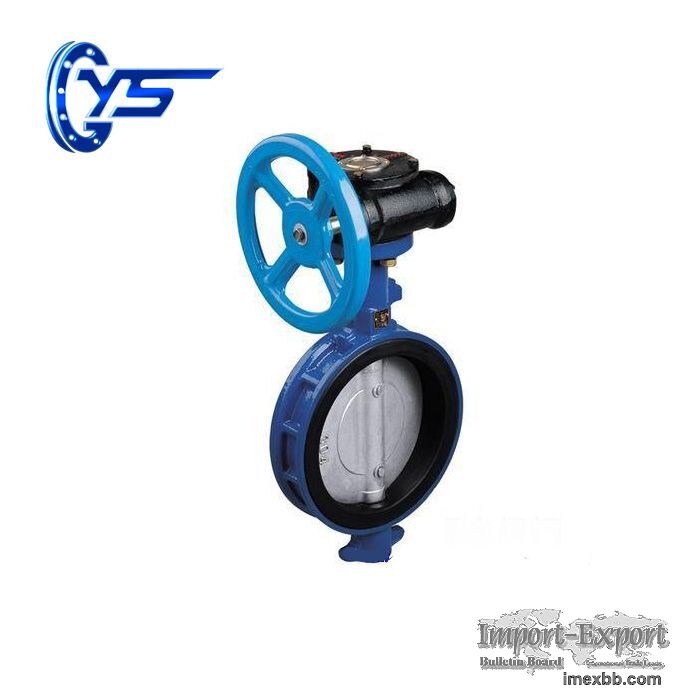

LTD3 / 6 / 971X-10 / 16 Lug Wafer Centerline Butterfly Valve

LTD3 / 6 / 971X-10 / 16 Lug Wafer Centerline Butterfly Valve ANSI Wafer Type
Butterfly Valve
Medium temperature: ≤80 ℃
Medium: water, oil (different depending on the seal)
Caliber: DN50-600
Pressure: 1.0-1.6mpa
Body material: gray cast iron / spheroidal graphite cast iron / carbon steel
Connection method: Wafer type
standard : National Standard, American Standard
ANSI Butterfly Valve Details
Lug Wafer Centerline Butterfly Valve Material of main parts
Part Name material
Valve body Gray Cast Iron / Ductile Iron / WCB
Butterfly Ductile iron / SS
Valve shaft Carbon steel
Sealing ring EPDM / NBR / PTFE
Application: This Butterfly valve is mainly used for shut-off valves, and it
can also be designed to have the function of regulating or shut-off and
regulating.
Lug type center line butterfly valve LTD371X performance specifications
model Nominal pressure
(mpa) Test pressure (mpa) proper temperature Applicable medium
(according to seal material change)
Strength (water) Sealed (water)
LTD71X-10 1.0  1.50  1.10  ≤80 ℃ Water, oil
LTD371X-10
LTD71X-16 1.6  2.40  1.80  ≤80 ℃ Water, oil
LTD371X-16

Lug type center line butterfly valve LTD371X Dimensions and connection
dimensions
model Nominal diameter
(mm) Size (mm)
D D1 H n-φ C
LTD71X-10 / 16 50 52.9 125 88.38 4-M16 42
65 64.5 145 102.54 4-M16 44.7
80 78.8 160 61.23 8-φM16 45.2
100 104 180 68.88 8-φM16 52.1
125 123.3 210 80.36 8-φM16 54.4
150 155.6 240 91.84 8-φM20 55.8
200 202.5 295 112.89
76.5 8-φM20
12-φM24 60.6
250 250.5 350
355 90.59
91.88 12-φM20
12-φM24 65.6
300 301.6 400
410 103.52
106.12 12-φM20
12-φM24 76.9
50 333.3 460
470 89.74
91.69 16-φM20
16-φM24 76.5
400 389.6 515
525 100.48
102.42 16-φM24
16-φM27 86.5

Our Flange Ball Valve’s materials mainly include WCB cast iron stainless
steel, etc. GOST, JIS, DIN, BS, ANSI gate valve, ball valve, globe valve,
butterfly valve are all our main product.
