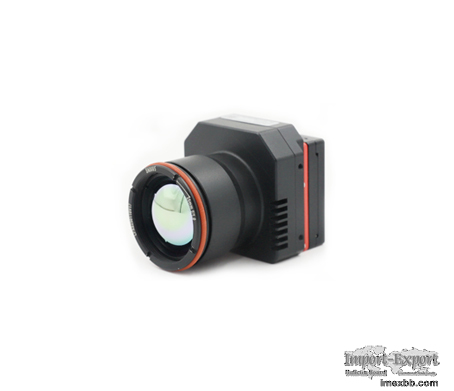

LT 384H/640H Temperature Sensing Camera

LT Series Temperature Measurement Uncooled Thermal Module has more stable and
reliable temperature measurement performance than others in the industry. It
provides uncompatible high-definition image, and its better electrical
performance and richer data application interfaces are very suitable for
application scenarios that have strict requirements on the core of infrared
thermal imaging.

High temperature measurement performance, accuracy up to ±0.5°C (with black
body ±0.3°C), to meet various future needs.

Various electrical properties, rich interfaces, and wide application range.

Professional software support to improve development efficiency.

Features of LT 384H/640H Temperature Sensing Camera
High performance to meet various future demands

Self-developed high-performance, high-resolution, and high-sensitivity Vox
detector

Wide temperature measurement range (-20°C~+550°C) allows monitoring of
industrial targets with high-temperature requirements.

Real-time full-frame temperature output with measurement accuracy up to
±0.5°C (±0.3°C with blackbody) ensures high accuracy.

Working with patented intelligent temperature measurement algorithms, the two
calibration modes, manual and automatic, ensure the measurement accuracy and
help improve efficiency.

Lenses with varying focal lengths are available for use either in space-limited
areas or for monitoring small targets. Quality infrared images are output to
meet detection requirements.

Diversified electrical characteristics and rich interfaces for wide application
scope

It is compact, lightweight, and easy to install in space-limited areas, without
load generated to the detected equipment.

Standard USB ports (optional) are supported to transmit on-site temperature
data in real time without complex wiring at the back-end.

Support multiple image and temperature output interfaces, enabling fast image
and temperature data transmission and improving efficiency.

Professional software support for higher development efficiency

Windows/Linux/Android SDKs are provided for users' secondary development, which
is practical and benefits the users.

Professional analysis software can show measurement results for more points,
lines, and areas. Isothermal analysis, high-temperature alarm, and other
functions simplify data acquisition at the back-end and facilitate more
flexible applications with reduced cost.

Video of LT 384H/640H Temperature Sensing Camera
Applications of LT 384H/640H Temperature Sensing Camera

Specifications of LT 384H/640H Temperature Sensing Camera
Model LT384H LT640H
Detectors
Detector Type VOx Uncooled Infrared FPA Detector
Resolution 384×288 640×512
Pixel Pitch 17μm 14μm
Frame Rate 50Hz 25Hz
Response Spectra 8～14μm
Image Adjustment
Brightness, Contrast Adjustment Manual/Auto0（default）/Auto1
Polarity Black hot/white hot
Palette Options for 18 palettes
Digital Zoom 1.0~8.0×Continuous zoom（step length 0.1）
Image Flip Left and right/up and down/diagonal
Selection Interested Area available
Image Processing Non-uniformity correction
Digital Filter and Imaging Denoising
Digital detail enhancement
Temperature Measurement Function
Measuring Range 0℃~60℃
Measurement Accuracy ±0.5℃@target temperature of 33℃~42℃；
±1.0℃@ target temperature of 20℃~33℃；
±1.0℃@ target temperature of 42℃~50℃
Measurement Tools 10 fixed spots can be set
Highest/lowest temperature capture in the full screen
Center temperature capture
12 lines/areas analysis tools
1 isotherm analysis tools
Temperature Correction Manual/Auto
Power Supply
Supply Voltage 4～6VDC
Expansion components support 5～24VDC
Typical Supply Voltage 4VDC
Expansion components support 12VDC
Power Protection Over-voltage/Under-voltage/Reverse Connection
Typical Consumption @25℃ Without expansion components ＜1.4W
With expansion components ＜1.7W
Interface
Video Output Analog video One channel PAL or NTSC
Digital video BT.656
BT.1120
14 bit or 10bit LVCMOS
14 bit or 10bit LVDS
Expansion Component USB3.0/LAN/CameraLink/ LVDS/LVCMOS
Serial Communication Interface RS-232
UART（3.3V）
Physical characteristics
Weight (without lens)（cores with network board excluded） ＜90g
Size (without lens) (cores with network board excluded) 44.5mm × 43mm（W×H）
Environmental Adaptation
Operating Temperature -10℃~60℃（18℃~25℃for accurate temperature
measuring）
Storage Temperature -40℃～+80℃
Humidity 5~90%，non-condensation
Vibration 4.3g, random vibration, all axial
Shock 40g,11ms, final peak sawtooth wave, 3 axial 6 direction

Now the price of thermal body temperature measurement system is affordable, if
you have needs, please contact us.

As a thermal scanner manufacturer, we will do our best to meet all the needs of
customers.

Minimum Order: 5 pieces
