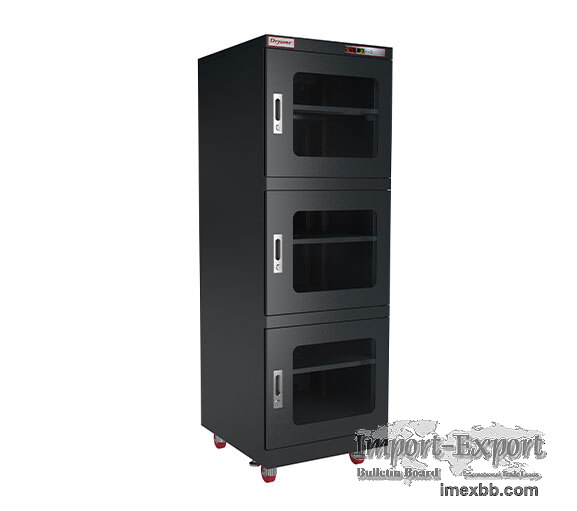

<1 Rh Ultra Low Dry Cabinet CF1 Series


CF Series is a plug-and-play, fully auto-dry low-humidity cabinet that will be
stable at <1% RH. There is no need to set the panel buttons at all. Our ultra-
low dry cabinet dehumidifier series is specially designed for MSD (moisture-
sensitive materials) to comply with IPC J-STD-033 Standard. CF low-humidity
storage cabinets series offers high humidity control, and fast recovery time
and is supplied with an anti-static body structure, adjustable shelves, wheels
(except the 157 and 200 bench top), locking doors, and a decimal digital
display.

<1%Rh Ultra Low Humidity Dry Cabinet CF1 Series Specifications
<1%rh Ultra Low Humidity Cabinet CF1 Series CF1-1200-6
Outside Dimension: W1200*D672*H1820MM
Internal Dimension: W1198*D644*H1618MM
Capacity: 1250L
Shelves: 5 shelves
Power Consumption: 135w/h(Ave);425w/h(Max)
Color: Black
Voltage: 230V/110V

<1%Rh Ultra Low Humidity Cabinet CF1 Series CF1-600
Outside Dimension: W600*D672*H1823MM
Internal Dimension: W598*D645*H1617MM
Capacity: 624L
Shelves: 5 shelves
Power Consumption: 83w/h(Ave);285w/h(Max)
Color: Black
Voltage: 230V/110V

<1%Rh Ultra Low Humidity Storage Cabinets CF1 Series Features
Display Precision: 3%RH: 1
Structure: 1mm thick carbon steel with paint.
Door: Handles, airtight magnetic sealers, and reinforced glass.
Wheel: Four 3'' wheels, two of them with brakes.
ESD Paint: 106~109Ω (surface resistance)
Grounding Wire: 1MG (940mm Long)

Optional Accessories Of < 1%rh Ultra Low Humidity Storage Cabinet CF1 Series

ESD Safety: 106~109Ω

Stainless steel cabinet(SUS#304) is widely adapted in clean room
Slide-shelves: it is convenient for reaching the components.

Nitrogen flow meter.
Warning light and buzzer: it will be activated when relative humidity
exceedsthe pre-set limit for 30 minutes.

ESD Wheels
Nitrogen Filling Module(QDN): 7.Nitrogen Filling Module(QDN): The nitrogen will
stop as soon as the relative humidity reaches preset digital value. So nitrogen
can be dramatically saved. Nitrogen doesn’t need to be pumped in continuously.

More kinds of desiccant storage cabinets, please visit our website.

Minimum Order: 4000 sets
