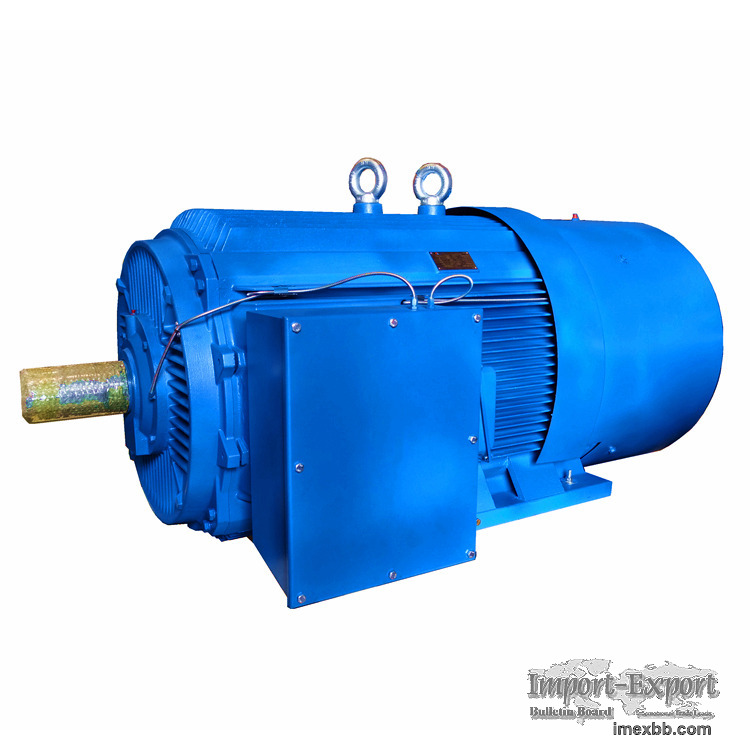

Low voltage high power squirrel cage motor

The low-voltage variable frequency motor has the characteristics of wide speed
regulation range, low vibration and low noise. The motor adopts the squirrel-
cage structure, which is reliable in operation and convenient in maintenance.
The installation dimensions and power levels are in accordance with the IEC
standard, which is consistent with the corresponding Y series low-voltage
motors. Interchangeability and versatility.
The low-voltage variable frequency speed control motor is equipped with an
independent cooling fan to ensure that the motor has good cooling effect at
different speeds. This series of motors outputs constant torque when operating
from 5 (3) to 50 Hz, and outputs constant power when operating from 50 to 100
Hz.
The low-voltage variable frequency motor can be used with many inverters, and
controlled by the inverter to achieve the speed under different conditions.
High Reliability High Voltage Motor Supplier:ZCL Electric Motor Technology Co.,
Ltd.
Frame number range: 315-560
Power range: 200kW-1500kW
Frequency: 50/60Hz
Number of levels: 2/4/6/8/10
Working system: S1
Protection level: IP54/IP55
Insulation class: F
Cooling method: IC416
Ambient temperature: -15 ° C ~ 40 ° C
Altitude: no more than 1000M
Voltage: 220V, 380V, 660V, 220/380V, 380/660V
