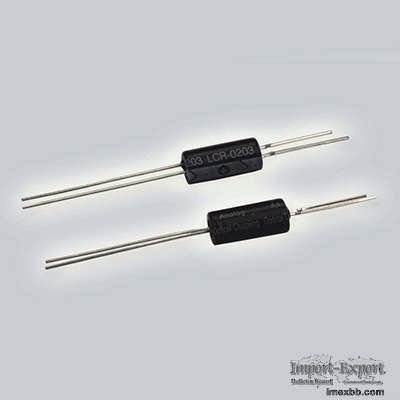

Low Distortion Coupling Linear Optocoupler LCR - 0203 Series for Volume Con

An Overview of Low Distortion Coupling Linear Optocoupler lcr 0203 Series for
Volume Control and Electrical Coupling
Optocoupler is an electronic component that transfers electrical signals
between two isolated circuits by using light. The analog linear optocoupler is
widle used in lighting, smart machine.

Feature
Pure resistor and non-polarity output
Wide range of analog liner resistance, "on" at the low resistance. "off" at
high resistance
Simple circuit configuration suitable for DC and AC use
Input to output isolation, and low distortion coupling

lcr 0203 datasheet
Type LCR- 0203 Series
Package Aluminum alloy columnar
Input current 0- 20mA
Input Voltage 1.6- 2.5Vdc
Output Light Resistance 50Ω - 1KΩ @20mA- 0.01mA
Output Dark Resistance 1Ω - 10MΩ @10 seconds off later
Response Period <2.5mS
Insulating Voltage >2500VRMS
Working Frequency <300KHz
Max Power 100mW
Dimension(mm) Diameter 6.0*13.5

Senba Sensing Technology Co.,Ltd., sets focus on producing top quality
photoelectric components, such as passive infrared sensor, Photoresistors and
Light Sensors ,etc. These series of chinese pir is advanced in this field.
