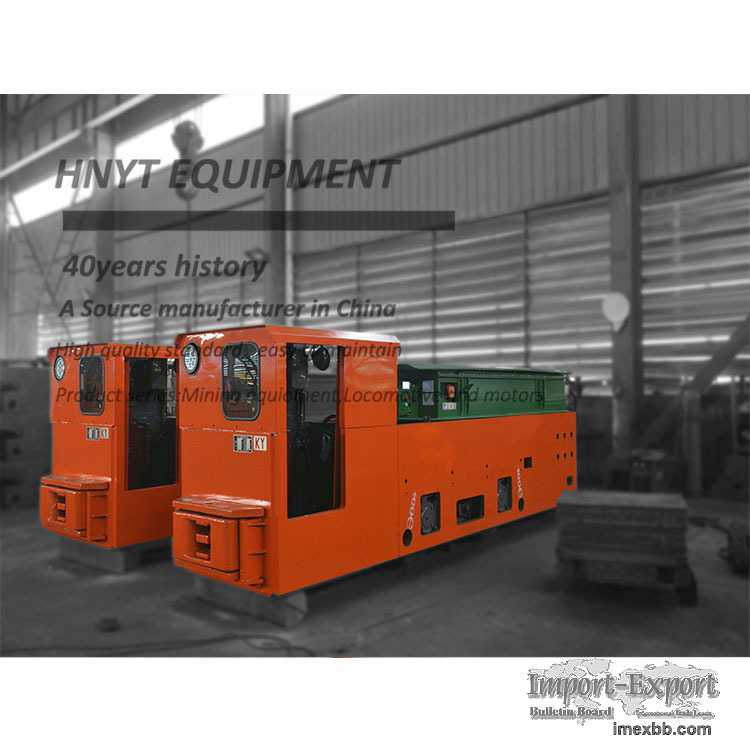

Locomotora eléctrica minera de 12 toneladas alimentada por batería de litio

Locomotora eléctrica minera de 12 toneladas alimentada por batería de litio
Battery electric locomotive is a kind of track traction equipment powered by
batteries, which is generally used in mines. There are two types of battery
electric locomotives, explosion-proof type and ordinary type. The explosion-
proof type is mainly used in coal mines. There are also many options in terms
of speed regulation and braking methods. Speed control methods include
resistance speed control, chopping speed control and frequency conversion speed
control. Braking methods include pure mechanical braking, hydraulic braking and
compressed air braking. In addition, electric braking can also be selected as
an auxiliary braking method.

Adhesive / total weight (t) : 12 ton
Track gauge (mm) : 600.762.900
Traction (KN) : 16.48
Max. Traction (KN) : 29.43
Speed(km/h) : 8.7
Battery Voltage (V) : 192V
Battery Capacity (Ah) : 560
Power (KW) : 22 KWx2
Dimensions Length(mm) : 5100
Width(mm) : 1050,1212or 1350
Height(mm) : 1800
Wheelbase (mm) : 1220
Wheel diameter (mm) : 680
Min Curve radius (m) : 10
Controller : Resistencia or IGBT
Braking method : Mechanical

Advantages of our product
1.Using high-quality steel plates, special rust removal process make sure it
more anti-corrosion and suitable for harsh mining environment.
2. Producing motors ourselves, using high lever insulation material and pure
copper, ensure the powerful traction force, and suitable for harsh mining
environment.
3.Gear anastomosis surface to reach more than 80%, which is far more exceeding
the standard.
4.Professionally designed and adjusted frame ensure safe driving and avoids
falling off rails.
5.A variety of braking methods can be choose, air brake, hydraulic brake,
electric brake, mechanical brake to ensure the safety drive.
6. 40 years richful experience with the ability to design and make customized
product according to your requirements.
7. Proving factory online-visiting

Factory Test
Mining Locomotive test
1.Before Running the locomotive,carry out gear debugging, lighting, gear, and
brake adjustment etc.To ensure the normal operation of the locomotive.
2.Carry out a tensile test before leaving the factory to ensure the load
performance of the locomotive meets the standard. Our design standards
generally exceed the national standard by 10%-20%.
3.Carry out different type running test before leaving the factory to ensure
the performance and normal operation of the whole locomotive. It can adapt to
various harsh conditions under simulated working conditions.
Motor test
The motor has to go through many inspection procedures before leaving the
factory, and each motor has to be carried out with load running experiments.
Explosion-proof motors are carried out with water pressure test.
All the test of motor is to ensure that can adapt to harsh working conditions.

FAQ
What's your product advantages?
We have more 40 years experience in this field so that we could design or
produce the locomotive as your requirement. We could also provide online
service to teach you how to operate and maintain the locomotive.
The most important thing that we produce the main part of the locomotive- The
traction motors. we could guarante the power of the locomotive.
1.Pre-sales Service:
The wide product range enables us to provide our customers with individual
machines or complete processing plants. Based on our customer's request and
budget, our experts make efficient and reliable solutions, and we produce
strictly follow customers' order. What's more, every customer has the chance to
visit the working machine in the site before placing the order.
2.After-sales Service:
Experienced technicians guidance is available on the phone, and on the
internet. One or more engineers will be dispatched to the quarry site to help
install the customer's plants.Necessary training about machine daily
maintenance to local workers is provided also.
3.Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
Handling time for an order:
Within 10 days supplied from stock
4.Shipping method:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
5.Quality Control:
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping
out.
6.After Services:
a. Our sales team will response for your question within 24 hours (Holiday is
Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our
product quality

Minimum Order: 1 sets
