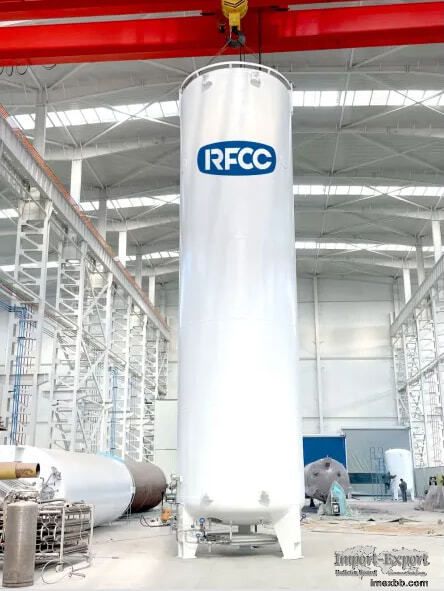

LNG Storage Tank - RFCC

LNG Storage Tank Main Technical Parameters:
Full Volume: 10,000L~50,000L
Work Pressure: 0.80MPa/1.60MPa/2.30MPa/3.45MPa
Filling Rate:90%
Inner Tank Design Temperature: -196℃
Shell Tank Design Temperature: -40℃~+50℃
Insulation: Vacuum with Multi-layer Wrapped
Stored Medium: LNG
Inner Tank Material: SS304 08 or SA240
Shell Tank Material: Q345R or SS304 08

Brief introduction:
This series of cryogenic storage tank is a superinsulated multi-layer storage
tank, the inner vessel material is stainless steel SS30408, the outer vessel
material is Q34SR or SS30408, can also be customized according to customers'
requirements. It is mainly used for storing NG in liquid state. The product is
widely used in urban peak gas supply, the main source of pipeline gas supply,
automobile refueling fuel, chemical industry, heating and other industries, and
has been favored and praised by customers for many years. praised by customers
for many years.

Main Features:
The storage tank has a double-layer cylinder structure. The inner cylinder and
piping are made of austenitic stainless steel, and the outer cylinder is made
of carbon steel. The intermediate layer is wrapped with multi-layer thermal
insulation paper and vacuumed. The customized stainless steel LNG cryogenic
storage tank is equipped with various valves for operation, and the valves are
installed around the bottom of the storage tank. The storage tank is equipped
with pressure gauge and level gauge to monitor the pressure and level in the
tank. The horizontal liquid cryogenic tank is compact in structure and occupies
a small space. The storage tank and compressor are composed of sealed parts,
which can supply liquid or gas without any power, ensuring the purity of the
discharged liquid or gas. With pressure conditioning installation, the user can
adjust the conditioning valve T according to the demand to discharge the liquid
at the required pressure. The pressure is stable and the operation is
convenient. The storage tank is equipped with a liquid filling connector for
the tank car, which can send liquid to the evaporator and tank car.

LNG Storage Tank Main Technical Parameters:
Full Volume: 10,000L~50,000L
Work Pressure: 0.80MPa/1.60MPa/2.30MPa/3.45MPa
Filling Rate:90%
Inner Tank Design Temperature: -196℃
Shell Tank Design Temperature: -40℃~+50℃
Insulation: Vacuum with Multi-layer Wrapped
Stored Medium: LNG
Inner Tank Material: SS304 08 or SA240
Shell Tank Material: Q345R or SS304 08
Qualification Certification:
ASME VIII DIV.1, CE PED/TPED, Russia EAC, China GB,
ISO9001:2015, ISO13485:2016, ISO14001:2015, ISO45001:2018
You can find more information on our web, so please take a look.
